Oil drain pipe in bottom of crankcase, arrangement - RA01001040430X(01-0430)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Operation no. of operation texts and work units or standard texts and flat rates:

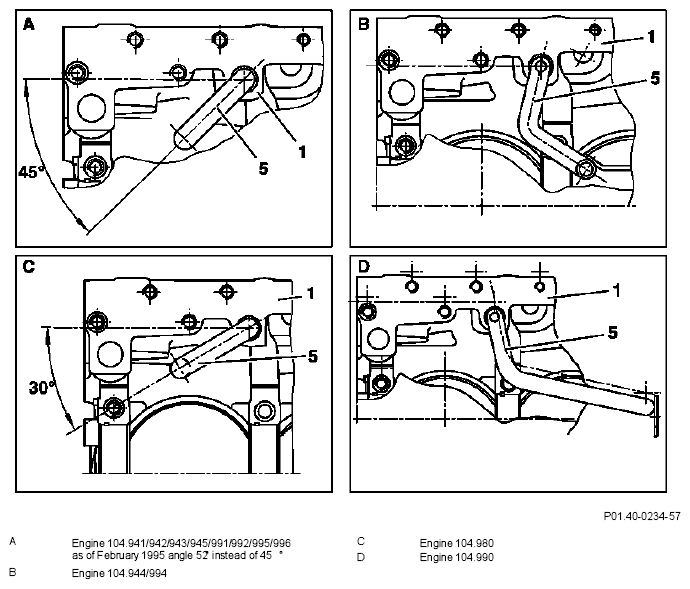

Fig 1: Identifying Oil Drain Pipe In Bottom Position

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Oil drain pipe (5)	install in position illustrated.
	NOTE: The oil drain pipe (5) is designed as a syphon. This prevents engine oil being drawn in together with the blow by gases if the opening of the oil drain pipe (5) is positioned below the oil level. The oil drain pipe (5) is knocked into the oil drain hole in the crankcase (1) in a particular position.
