Dimensions for pressing in straight pins in crankcase - RA01001041020X(01-1020)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

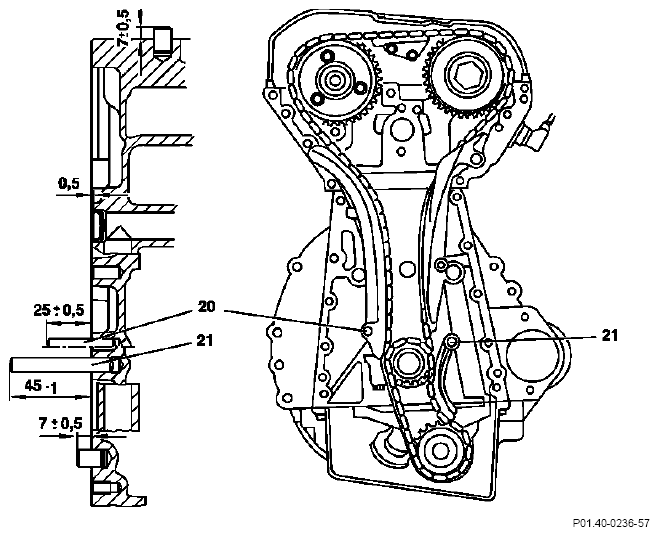

Fig 1: Dimensions For Pressing In Straight Pins In Crankcase

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Straight pins (20) and (21)	install, do not knock in as far as the stop.
	NOTE: The specified installation dimensions must be observed so that the appropriate attachment, e.g. guide rail provides adequate bearing guide.
