Cranking engine at front of crankshaft - RA01001200120X(01-0120)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
ROTATING CRANKSHAFT FROM BELOW MODELS 129, 140
| Fan shroud | remove, install (20-3400) |
| Car | raise on lift platform, lower |
| Bottom engine compartment panel | remove, install (Maintenance Manual 6190) |

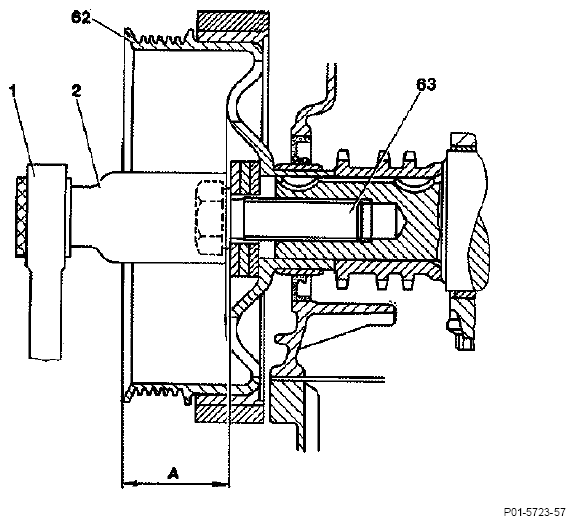

| Crankshaft | rotate with torque wrench (1) and wrench insert (2) 001 589 65 09 00 waf 27 in direction of rotation of engine |
| Model 202: crankshaft | rotate with torque wrench (1) socket bit waf 27 in direction of rotation of engine |
MODEL 140
| Fan shroud ring | remove from fan shroud, fit on (20-3400) |
| Car | raise on lift platform, lower |
| Bottom engine compartment panel | remove, install (Maintenance Manual 6190). |
| Crankshaft | rotate with torque wrench (1) and wrench socket (2) 001 589 65 09 00 waf 27 in direction of rotation of engine |
ROTATING AT CRANKSHAFT FROM ABOVE MODELS 129, 140
| Fan shroud | remove, install (20-3400) |
| Crankshaft | rotate with torque wrench (1) and wrench socket (2) waf 27 in direction of rotation of engine |
Special tools
