Compression pressure test - RA01001040100X(01-0100)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Preceding work:
Warning instructions when hood open (01-0085) .
Operation no. of operation texts and work units or standard texts and flat rates:
| Engine | warm up to normal operating temperature. |
| Spark plug | remove, install (REPLACE SPARK PLUGS ). |
| Compression tester | connect. |
| Engine | crank several times by pressing contact switch on compression tester, in idle speed position and handbrake applied, to expel residues and soot (01-0110) . |

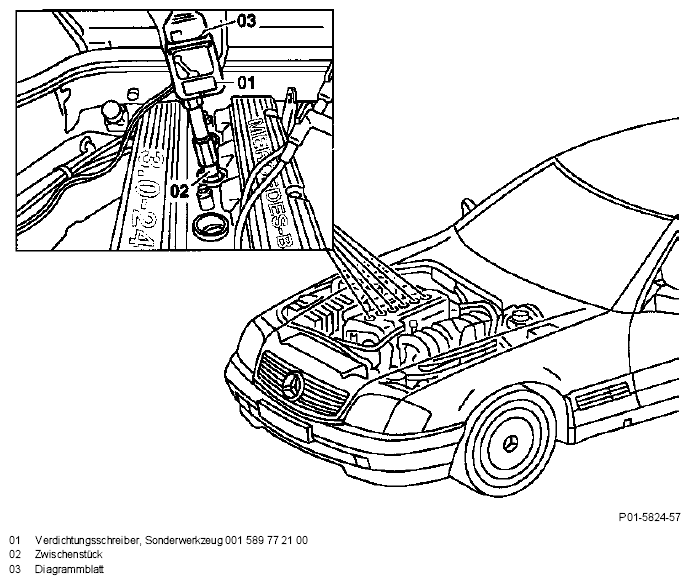

| Diagram sheet (03) | insert into compression tester (01). |
| Compression tester (01) | press into spark plug hole of respective cylinder. |
| Throttle valve | open fully. |
| Engine | crank approx. 8 revolutions with starter (01-0110) . |
| All cylinders | check in this manner. |
| If minimum compression pressure not achieved | check cylinders for leaks (01-1300) . |
TEST DATA
| Test data when engine at normal operating temperature | Overpressure in bar | ||
| Compression pressure at | normal compression | min. 10 | max. 14 |
| fuel-optimized | min. 6 | max. 10 | |
| Permissible difference between individual cylinders | max. 1.5 | ||
