Checking rear of engine for leaks when running - RA01001192240X(01-2240)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Preceding work:
Driven plates removed (03-4100) .
Transmission 722.3
| Rear of engine | clean. |
| Dried surrounding area | spray with Mercedes-Benz white contrast spray, part no. 000 989 03 59. |
| Oil level in engine | check, adjust to correct level (18-0020) . |
| Driven plates with ring gear | install (03-4100) . |

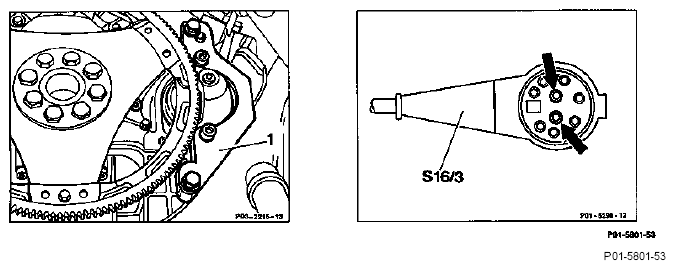

| Starter with bracket (1) | bolt to crankcase, special tool 119 589 00 40 00. |
| Engine in installation position | support at rear and secure. |
| Automatic transmission | bridge contact at starter lockout switch (S16/3) (arrows). |
| Engine | start, check for leaks.
NOTE:
Stored faults which may originate from testing work involving disconnecting wiring or simulation, must be erased in the fault memory after completing work.
|
