Remove/install starter - AR15.30-P-7100R

ENGINE 113.963 in MODEL 230.475

ENGINE 113.992 in MODEL 230.474

ENGINE 113.990 in MODEL 211.076 /276

ENGINE 113.991 in MODEL 215.374, 220.074 /174

ENGINE 112.973 in MODEL 230.467

ENGINE 113.995 in MODEL 230.472

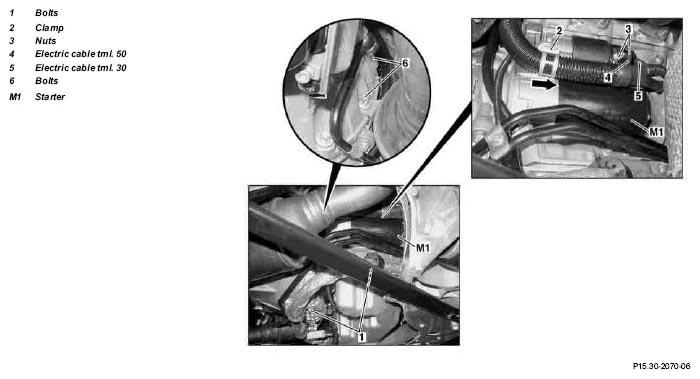

Fig 1: Identifying Starter Remove/Install Components - Engine 113.963, 992, 990, 991, 996, 112.973

	Remove/install
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of explosion  caused by oxyhydrogen gas. Risk of poisoning and caustic burns  caused by swallowing battery acid. Risk of injury  caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries	No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and safety glasses. Only pour battery acid into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
1	Turn key in electronic ignition lock EIS into position "0".	Key cannot be withdrawn.
		Vehicles with Keyless-Go code 889: Remove Keyless-Go cards from the vehicle and store outside of the transmitter range.
2	Remove ground line(s) at battery(ies)	Do not connect a quiescent current retention device. Risk of short-circuit!
	Notes on battery		AH54.10-P-0001-01A
		Model 230: Dismount starter and on-board electrical system battery.
		Model 211.076	AR54.10-P-0003T
		Model 211.276	AR54.10-P-0003TA
		Model 215, 220	AR54.10-P-0003I
		Model 230	AR54.10-P-0003R
3	Remove engine compartment paneling	Model 211	AR61.20-P-1105T
		Model 215, 220	AR61.20-P-1105M
		Model 230	AR61.20-P-1105R
4	Unscrew bolts (1) at bracket of hydraulic line
5	Press off clamp (2) in direction of arrow
6.1	Remove right engine mount	Model 211.076 / 276	AR22.10-P-1100PV
		Remove the bolts on the engine mount, lift the engine slightly and place the engine mount aside. Engine mount cannot be removed completely, otherwise the exhaust system must also be removed.
7	Unscrew nuts (3).	Remove electrical line tml. 50 (4) and electrical line tml. 30 (5).
			*BA15.30-P-1001-01A
			*BA15.30-P-1002-01A
8	Remove bolts (6)		*BA15.30-P-1003-01A
9	Take starter (M1) down and out
10.1	Check ring gear at flywheel for wear and damage	When replacing the starter on vehicles fitted with manual transmission
		Rotate engine at the crankshaft in direction of rotation.
10.2	Check ring gear on the drive plate for wear and damage	When replacing the starter on vehicles fitted with automatic transmission
		Rotate engine at the crankshaft in direction of rotation.
11	Install in the reverse order
12	Perform function check
13	Render electrical system operational	See ↓ Carry out basic programming:
		Model 211	AR00.19-P-0200T
		Model 215, 220	AR00.19-P-0200M
		Model 230	AR00.19-P-0200R
14	Read out fault memory and erase if necessary	STAR DIAGNOSIS diagnosis system	*WH58.30-Z-1048-13A
	Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A
