Removal and installation of propeller shaft - AR41.10-P-0050B

MODEL 210 with TRANSMISSION 717, 722

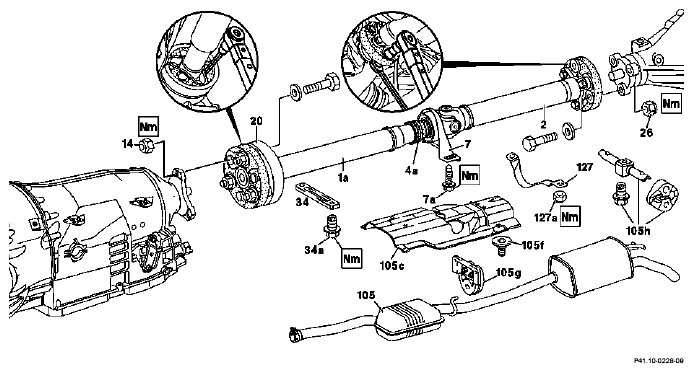

Fig 1: Identifying Propeller Shaft Components - Model 210 With Transmission 717, 722

	Removing, Installing
Installation	Replace self-locking nuts and bolts
1	Unhook or unscrew suspension (105g, 105h) on center and rear muffler of exhaust system (105)	Lower exhaust system at rear muffler and support
2	Detach exhaust heat shield (105c) in tunnel area
3	Detach reinforcement brace (34)		*BA61.10-P-1002-01C
4.1	Detach retainer (127) for seat belt anchorage	If fitted	*BA91.40-P-1008-01A
5	Detach front propeller shaft (1a) from transmission	The flexible disk remains on the propeller shaft
			*BA41.10-P-1001-01A
6	Detach rear propeller shaft (2) from rear axle center assembly	The flexible disk remains on the propeller shaft
			*BA41.10-P-1002-01A
7	Loosen fitted sleeves of flexible disks		AR41.10-P-0050-09DA
	Drift punch for loosening fitted sleeves in the flexible disks		WF58.50-P-4110-01A
8	Unscrew bolts (7a) on propeller shaft intermediate bearing	Support propeller shaft Installation:< f > Only tighten bolts (7a) after attaching the flexible disks to the transmission and rear axle center assembly
			*BA41.40-P-1001-01A
9.1	Remove washers on the front and rear propeller shaft intermediate bearing	Models 210.610/617
		Washer on front propeller shaft intermediate bearing	*BE41.10-P-1001-03A
		Washer on rear propeller shaft intermediate bearing	*BE41.10-P-1002-03A
10	Pull propeller shaft off spigot on transmission and rear axle and remove backwards	Installation:  Pack cavities in the two centering sleeves with multi-purpose grease	*BF41.10-P-1001-01A
11.1	Separate front and rear propeller shaft at slide connection if necessary	Only if necessary Installation:  Smear splined shaft profile with Molykote grease ↓
		Long-life greases (NLGI class 2)	BB00.40-P-0266-02A
		Assemble propeller shaft	AR41.10-P-0050-05DA
		Installation:  On model 210.010 with 4-speed automatic transmission 722.4 except with code 450 taxi version (up to 30.6.96) for logistical reasons only  a front propeller shaft with 90 mm hole circle dia.  (previously 80 mm) is available. Therefore the three-arm flange on the transmission should be replaced at the same time.	ra27147220440x
	Checking
12	Check flexible disks, vibration damper, centering sleeves and propeller shaft intermediate bearing for wear	Replace if necessary ↓
		Removing and installing propeller shaft intermediate bearing and replacing deep-groove ball bearing	AR41.10-P-0100DA
		Replace centering sleeve	AR41.10-P-0200A
13	Install in reverse order

Test values for propeller shaft intermediate bearing

Number	Designation		Model 210.610	Model 210.617
BE41.10-P-1001-03A	Shim on front propeller shaft intermediate bearing	mm	4	4
BE41.10-P-1002-03A	Shim on rear propeller shaft intermediate bearing	mm	-	4

Propeller shaft

Number	Designation			Model 210
BA41.10-P-1001-01A	Self-locking nut, flexible disk to transmission or front propeller shaft	M10	Nm	40
		M12	Nm	60
BA41.10-P-1002-01A	Self-locking nut, flexible disk to rear propeller shaft or rear axle center assembly	M10	Nm	40
		M12	Nm	60

Propeller shaft intermediate bearing

Number	Designation			Model 210.0/2	Model 210.6
BA41.40-P-1001-01A	Bolt Propeller shaft intermediate bearing on frame floor	Bolt with washer	Nm	-	-
		Bolt with collar and centering tip	Nm	30	-
		Bolt with collar without centering tip	Nm	-	25

Frame floor

Number	Designation		Model 210
BA61.10-P-1002-01C	Self-locking bolt, front reinforcement brace to frame floor	Nm	25

Seat belts/emergency tensioning retractors

Number	Designation		Model 210
BA91.40-P-1008-01A	Nut for bracket, seat belt fastening to frame floor	Nm	280

Propeller shaft

Number	Designation			Model 210
BF41.10-P-1001-01A	Grease	Propeller shaft centering sleeve	g	6
		Specifications for Service Products	Sheet	BB00.40-P-0267-00A
