Pulling off rubber mount with grooved ball bearing and front protective cap - AR41.10-P-0100-01DA

Fig 1: Identifying Two-Legged Puller (000 589 88 33 00)

Fig 2: Identifying Puller Arms (129 589 00 34 00)

Insert puller legs between rear protective cap (if installed) and propeller shaft intermediate bearing (see detail).

Pull rubber mount (7) together with grooved ball bearing and front protective cap (if installed) off the joint fork.
Protective caps are not installed at the grooved ball bearing, on either the stem or fork side on models 203, 208, 210, 170 and with models 129, 140, 202 as of 6/95.

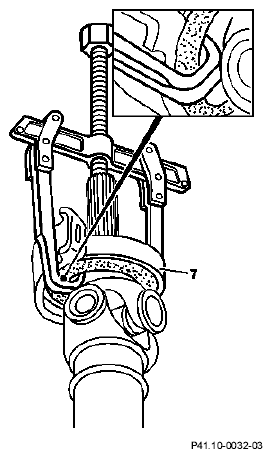

Fig 3: Pulling Off Rubber Mount With Grooved Ball Bearing And Front Protective Cap
