Mounting new protective cap on grooved ball bearing - AR41.10-P-0100-04DA

Fig 1: Identifying Alignment Tool (126 589 03 15 00)

Fig 2: Identifying Alignment Tool (201 589 07 15 00)

Mount new protective cap (6) using alignment tool (05).

Models 129, 140, 202.028  :

126 589 03 15 00

Models 202.01, 202.020/022, 202.1  :

201 589 07 15 00

Ensure that the protective cap contacts the grooved ball bearing (8) (refer to detail).

Use the protective cap (6)once only.

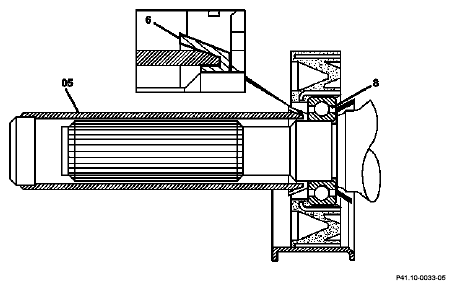

Fig 3: Identifying Protective Cap, Alignment Tool & Grooved Ball Bearing
