Removing and installing cover on center console - AR68.20-P-2350K
MODEL 208
| Removal, installation | |||
|---|---|---|---|

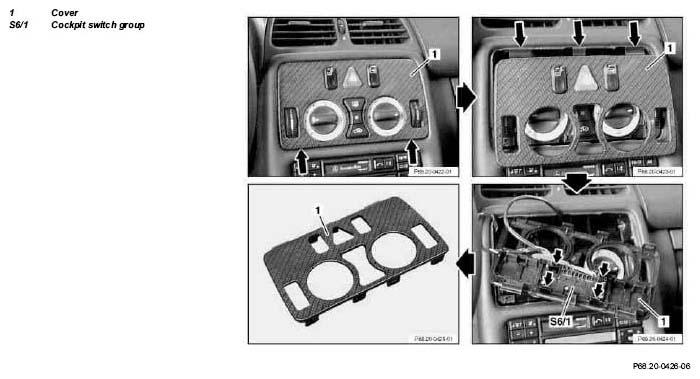

| 1 | Unclip cover (1) at bottom, pull back and move out at top with retaining lugs | Figure | |
| 2 | Unclip cockpit switch group (S6/1) (arrows) | ||
| 3 | Remove cover (1) | ||
| 4 | Reinstall in opposite order |
