Removing and installing loudspeakers in rear doors - AR82.62-P-7874EA
MODEL 202
| Removal, installation | |||
| 1 | Remove door trim on rear door | AR72.12-P-1010E | |

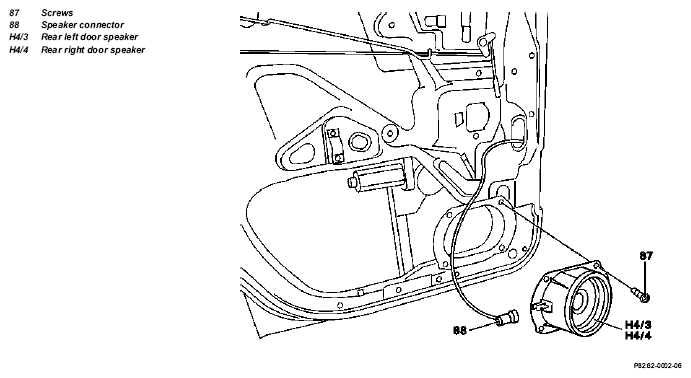

| 2 | Unplug speaker connector (88) | ||
| 3 | Unscrew screws (87) | ||
| 4 | Take out speakers (H4/3, H4/4) | ||
| 5 | Reinstall in opposite order |
