Removing and installing headlamp wiper motor - AR82.15-P-5500E
MODEL 202 with CODE (600a) headlamp cleaning system

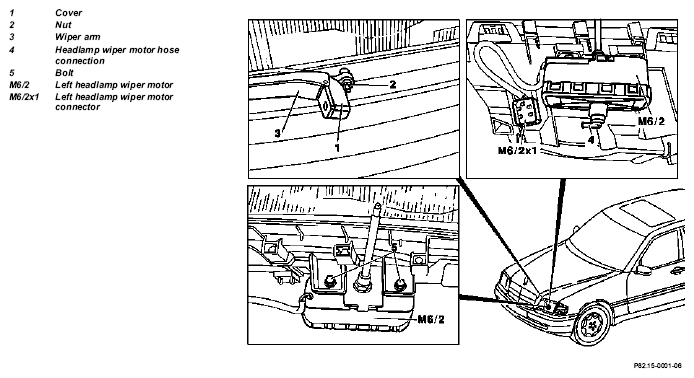

Fig 1: Identifying Headlamp Wiper Motor Remove/Install Components - Model 202 With Code (600a) Headlamp Cleaning System
| Removal, installation | |||
| 1 | Press on cover (1) | ||
| 2 | Unscrew nut (2) of wiper arm on wiper shaft | *BA82.15-P-1001-01A | |
| 3 | Pull off wiper arm (3) | ||
| 4 | Remove headlamp unit | AR82.10-P-4730EA | |
| 5 | Separate connector of headlamp wiper motor (M6/2x1) | ||
| 6 | Detach hose from wiper motor connector (4) | ||
| 7 | Unscrew bolt (5) | ||
| 8 | Take off headlamp wiper motor (M6/2) | ||
| 9 | Reinstall in opposite order | ||
| Perform functional check of headlamp cleaning system | AR82.15-P-5500-02E | ||
| Adjust headlamp wiper arm | AR82.15-P-5500-01E |
| Number | Designation | Model 202 | |
|---|---|---|---|
| BA82.15-P-1001-01A | Nut of wiper arm on wiper shaft | Nm | 9,5 |
