Electrical System - Body -- 202 Chassis
>>
Basic Knowledge
>>
Interior lighting (IL), location of components - GF82.20-P-0002-01C
Interior lighting (IL), location of components - GF82.20-P-0002-01C
Location of components

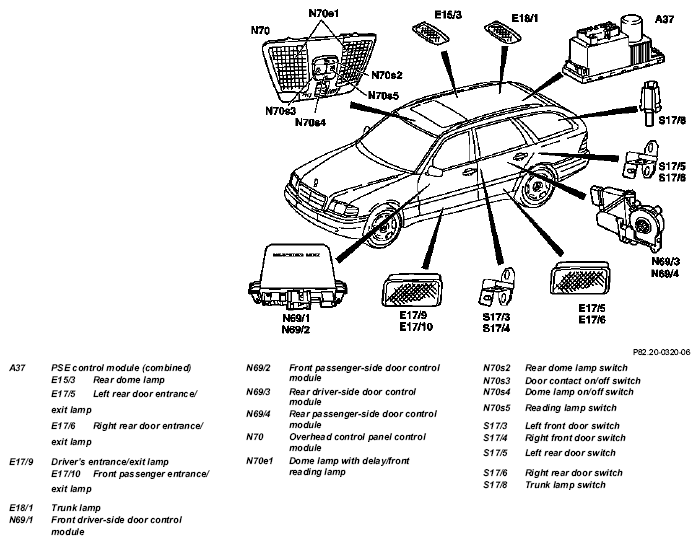

Fig 1: Identifying Interior Lighting Components
