Removing and installing rear window noise suppression capacitor - AR82.62-P-7385C

MODEL 202.07/08/18

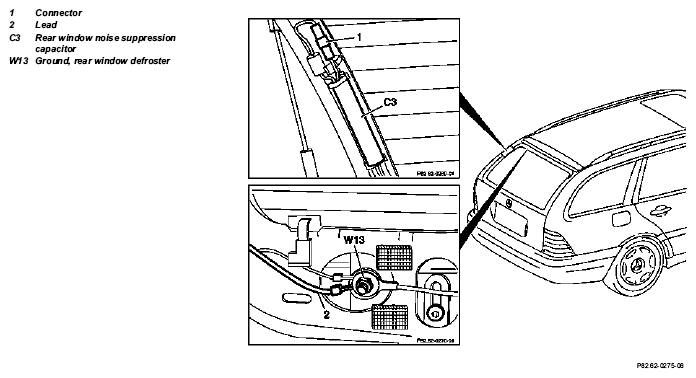

Fig 1: Identifying Rear Window Noise Suppression Capacitor Remove/Install Components - Model 202.07/08/18

	Removal, installation
1	Remove paneling on tailgate above rear window
2	Remove paneling on tailgate at top left
3	Disconnect lead (2) to ground for rear window defroster (W13)
4	Disconnect connector (1)	Installation:  After connecting push foam rubber sleeve over connector (1)
5	Unclip rear window noise suppression capacitor (C3) from tailgate	Installation:  Install electrolytic capacitor (rear window noise suppressor) (C3) with foam rubber protective sleeve.
6	Reinstall in opposite order
