Removing and installing handset in stowage compartment armrest or stowage compartment - AR82.70-P-8915A
MODEL 202, 208 with CODE (274) MB D-network telephone

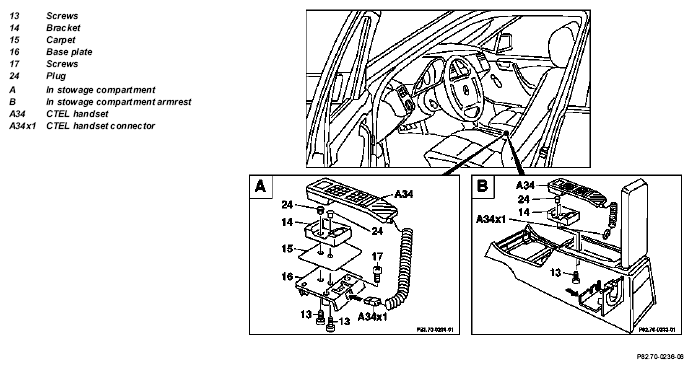

Model 202

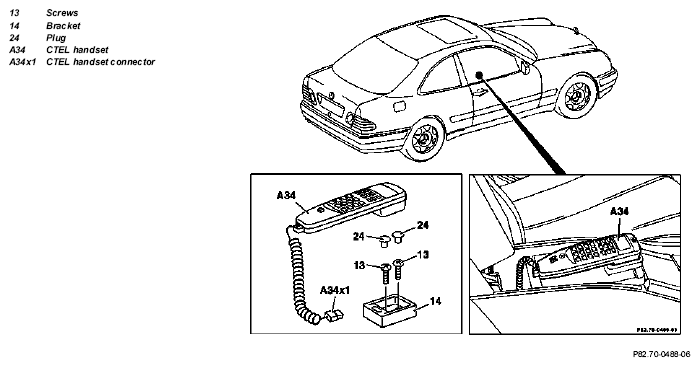

Model 208
| Removing, installing | |||
| 1 | Open housing for cable routing (arrow) | On model 202 with stowage compartment armrest | |
| 2 | Disconnect CTEL handset connector (A34x1) and remove CTEL handset (A34) | ||
| Modified CTEL handset (A34) | BT82.70-P-9403-03A | ||
| 3 | Remove base plate (16) and unscrew screws (13) | On model 202 with CTEL handset in oddments tray | |
| 4 | Remove plug (24) and unscrew screws (13) | ||
| 5 | Remove bracket (14) | ||
| 6 | Install in reverse order |
