Removing and installing front dome lamp - AR82.20-P-0110E

MODEL 202 up to 31.5.97

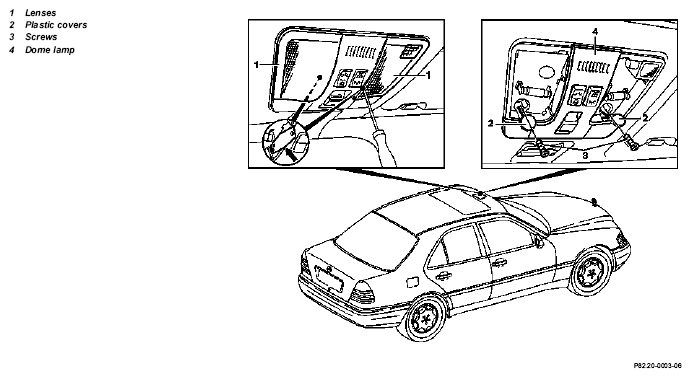

Fig 1: Identifying Front Dome Lamp Remove/Install Components - Model 202 Up To 31.5.97

	Removal, installation
1	Lever off lenses (1)	Pay attention to mechanism for levering out parts between dome lamp and lenses
2	Lever off plastic covers (2)
3	Remove screws (3)
4	Lever off front dome lamp (4)
5	Unplug connectors at the dome lamp (4)
6	Install in the reverse order
