Removing and installing cellular telephone interface - AR82.70-P-7379E
MODEL 202.018 /02 /12 /13, 208.3 with CODE (316) MB D-network telephone (D2B)
Illustrated on model 202 sedan

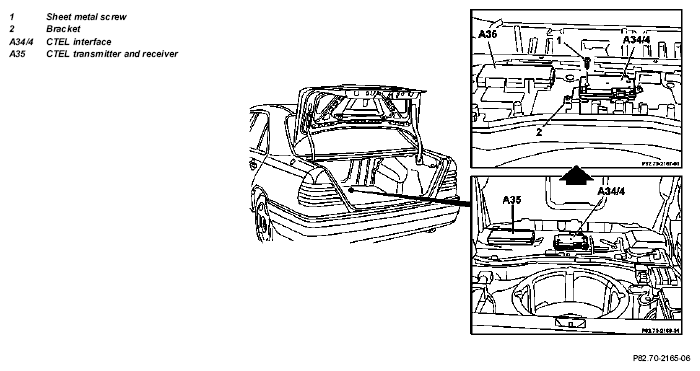

Fig 1: Identifying Cellular Telephone Interface Remove/Install Components - Illustrated On Model 202 Sedan
| Removal, installation | |||
| 1 | Connect quiescent current retention unit | *WH58.30-Z-1012-09A | |
| 2 | Disconnect ground lead from battery | AR54.10-P-0003A | |
| 3 | Remove floor paneling in trunk | ||
| 4 | Remove cover on control module plate | ||
| 5 | Unscrew sheet metal screw (1) | ||
| 6 | Release connectors on CTEL interface (A34/4) and disconnect | ||
| 7 | Remove CTEL interface (A34/4) | ||
| 8 | Install in opposite order |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1012-09A | Quiescent current retention unit |
