Removing and installing antenna for global positioning system (GPS) on vehicles with APS - AR82.61-P-7474J
MODEL 202.018 /02 /12 /13, 208.3 Combined CTEL/GPS roof antenna (also for GPS antenna)
Illustrated on model 202

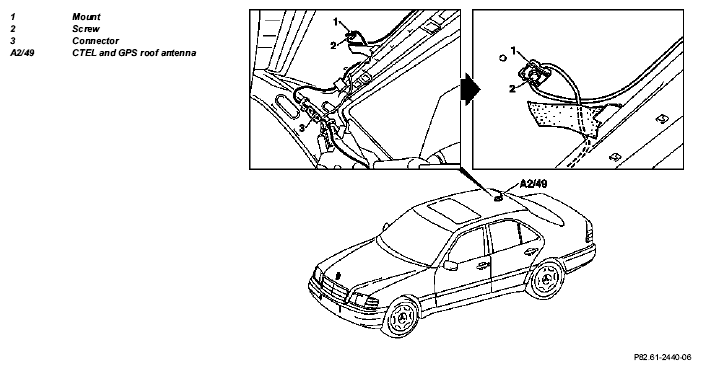

Fig 1: Identifying Antenna For Global Positioning System On Vehicles With APS Remove/Install Components - Illustrated On Model 202
Removal also valid for GPS antenna (A2/23)
| Removal, installation | |||
| 1 | Remove paneling from right C-pillar | Model 202 | AR68.30-P-4490E |
| Model 208.3 | AR68.30-P-4490K | ||
| 2 | Remove rear headliner | ||
| 3 | Disconnect connector (1) | ||
| 4 | Unscrew screw (2) and remove with mount (3) | ||
| 5 | Loosen felt strip (arrows) and cable strap if applicable | ||
| 6 | Remove CTEL and GPS roof antenna (A2/49) | ||
| 7 | Install in opposite order |
