Removing and installing antenna - AR82.70-P-8951Y
MODEL 140, 202, 208.3, 210 up to 30.6.00 with CODE (316) MB GSM cellular telephone (D2B) with CODE (317) GSM cellular telephone (D2B)
MODEL 202.07 /08 /18, 208.3, 210 as of 1.7.00 with CODE (853) MB standard cellular telephone with CODE (854) MB cellular telephone with CODE (855) TELE AID

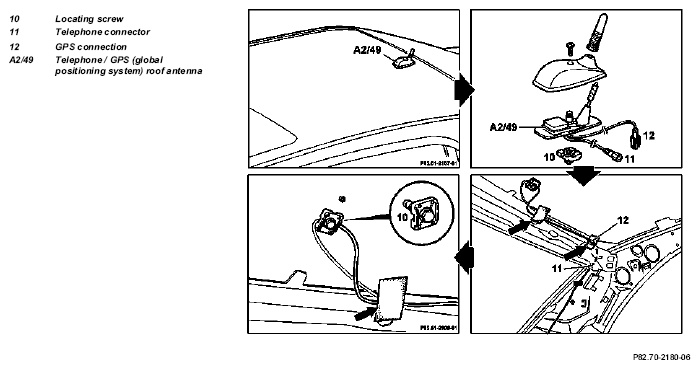

Illustrated on model 210 sedan
| Removal, installation | |||
| 1 | Loosen roof trim at rear | Model 202 | AR68.30-P-4300E |
| Model 210.0 | AR68.30-P-4300F | ||
| Model 210.2 | AR68.30-P-4300FA | ||
| Model 208.3 | AR68.30-P-4300K | ||
| Model 140 | |||
| 2 | Loosen adhesive felt (arrows) | ||
| 3 | Disconnect telephone connector (11) and GPS connection (12) | ||
| 4 | Unscrew locating screw (10) | ||
| 5 | Carefully lift antenna from roof | Replace self-adhesive gasket on antenna base when installing. |
|
| 6 | Install in the reverse order |
