Removing and installing GSM 1800 MHz network compensator - AR82.70-P-0010AD
MODEL 215 as of 1.7.00 with CODE (854) MB cellular telephone

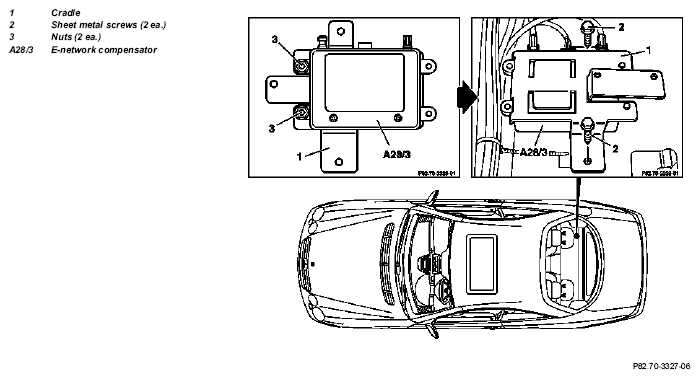

Fig 1: Identifying GSM 1800 MHz Network Compensator Remove/Install Components - Model 215 As Of 1.7.00 With Code (854)
| Removal, installation | |||
| 1 | Connect quiescent current retention unit | AR54.10-P-1030-07I | |
| *WH58.30-Z-1012-09A | |||
| Risk of explosion from explosive gas. Risk of poisoning and caustic burns from swallowing battery electrolyte. Risk of injury from caustic burns to eyes and skin from battery electrolyte or from handling damaged lead acid batteries. | No fire, sparks, naked flames or smoking. Wear acid-protective gloves, clothing and eye protection. Pour battery electrolyte only into suitable and appropriately marked containers. | AS54.10-Z-0001-01A | |
| 2 | Disconnect ground cable of battery | AR54.10-P-0003I | |
| Notes on battery | All models. | AH54.10-P-0001-01A | |
| 3 | Remove rear shelf | AR68.30-P-4580M | |
| 4 | Release connector on E-network compensator (A28/3) and disconnect | ||
| 5 | Disconnect antenna connections | ||
| 6 | Unscrew sheet metal screws (2) and lift off cradle (1) with E-network compensator (A28/3) | ||
| 7 | Unscrew nut (3) | ||
| 8 | Remove E-network compensator (A28/3) | ||
| 9 | Install in the reverse order |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1012-09A | Quiescent current retention unit |
