Removing and installing CD player with changer - AR82.64-P-7507EA
MODEL 202.01 /02 /12 /07 /08 /18, 208, 210.0 /6 with CODE (819) CD changer in trunk, 6 CDs

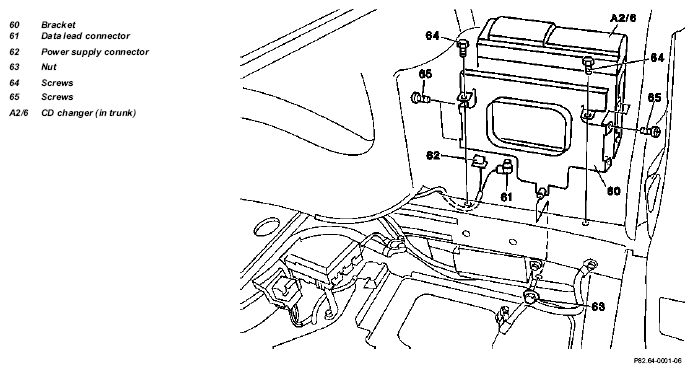

Illustrated on model 202
The location of the CD changer also applies for the T-model (model 202)
| Removal, installation | |||
| 1.1 | Remove battery | Model 202, 208 | AR54.10-P-0005EA |
| 2 | Unscrew screws (64) | The CD player with changer is installed in the trunk on the left. |
|
| 3.1 | Unscrew nut (63) | Model 202, 208 | |
| 4 | Take out CD player with changer (A2/6) and mounting bracket (60) | ||
| Adapter (interface) at CD changer discontinued | Model 202 (code 819) | BT82.64-P-9309-01A | |
| CD changer (A2/6) compact design | (Code 819) | BT82.64-P-0001-01A | |
| 5 | Unplug electrical connection consisting of dataline (61) and power supply (62) | ||
| 6 | Remove screws (65) | ||
| 7 | Take mounting bracket (60) off CD player together with changer (A2/6) | ||
| 8 | Install in the reverse order | ||
| 9 | Perform operational check |
