Removing and installing Acoustimass bass module - AR82.62-P-7839EB
MODEL 202.07 /08 /18 with CODE (810) Sound system

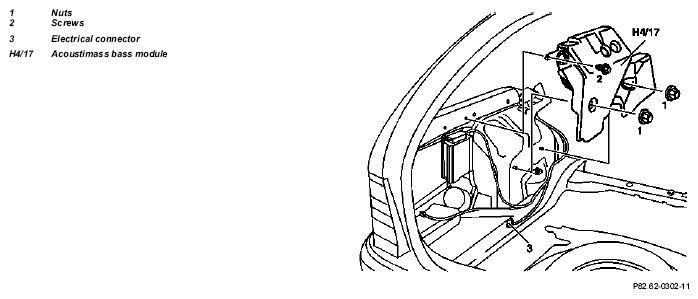

Fig 1: Identifying Acoustimass Bass Module Remove/Install Components - Model 202.07 /08 /18 With Code (810)
| Removal, installation | |||
| 1 | Remove covering on rear center element | AR68.30-P-4785A | |
| 2 | Remove side paneling in rear | AR68.30-P-4780A | |
| 3 | Unscrew nuts (1) | ||
| 4 | Unscrew screw (2) | ||
| 5 | Remove Acoustimass bass module (H4/17) | ||
| 6 | Disconnect electrical connector (3) from bases module | ||
| 7 | Reinstall in opposite order | ||
| 8 | Check for proper function |
