Telephone (GSM), location of components - GF82.70-P-0003-01E

Model 202 as of 1.6.98 up to 31.5.00 with codes 316/317

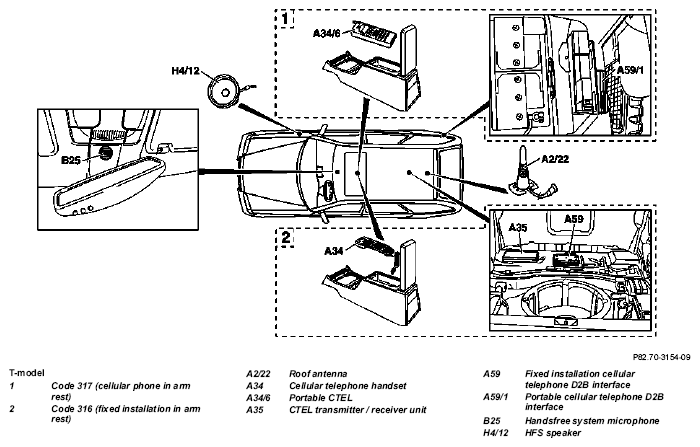

Fig 1: Identifying Telephone (GSM) Location Of Components (T-Model)

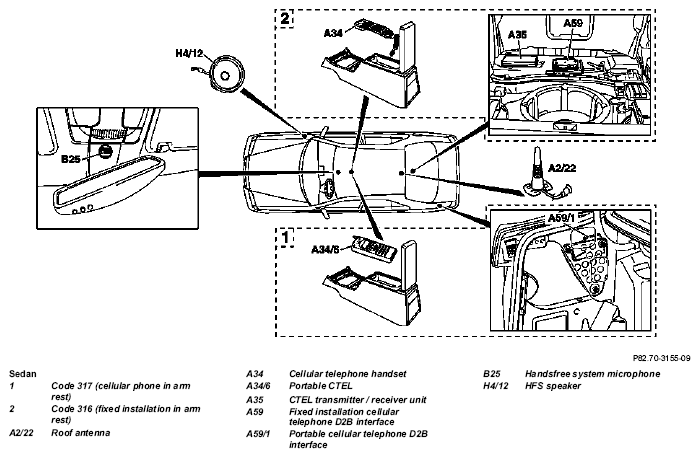

Fig 2: Identifying Telephone (GSM) Location Of Components (Sedan)
