Preparation For Tests (Section 22)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 1996 Mercedes-Benz C36, 1996 Mercedes-Benz C280, 1996 Mercedes-Benz C220, 1995 Mercedes-Benz C36, and 1995 Mercedes-Benz C280. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: When exchanging an ETS/SPS control module, the replacement module must have the code data entered via the HHT. Follow instructions on the HHT.
  1. Turn ignition OFF.
  2. Disconnect ASR/SPS or ETS/SPS control module (N47-1 or N47-2).

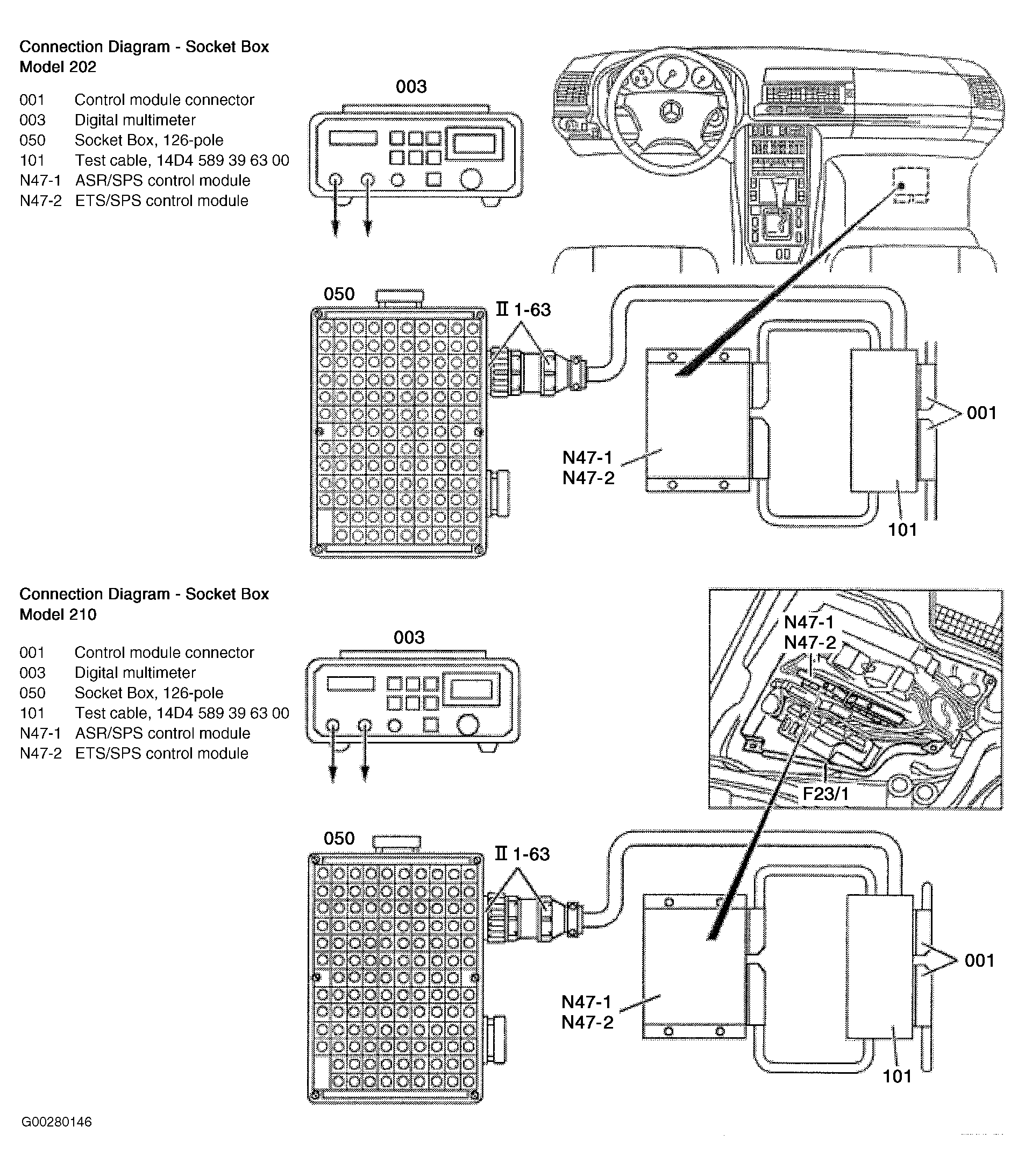

  3. Connect socket box (126 pole) with test cables as shown in illustration. See Fig 1.
Fig 1: Identifying Connection Diagram
G00280146Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
