Test Steps 26.0-30.0

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 1996 Mercedes-Benz C36, 1996 Mercedes-Benz C280, 1996 Mercedes-Benz C220, 1995 Mercedes-Benz C36, and 1995 Mercedes-Benz C280. However, it is still accessible from the selected car via links, so may be relevant.

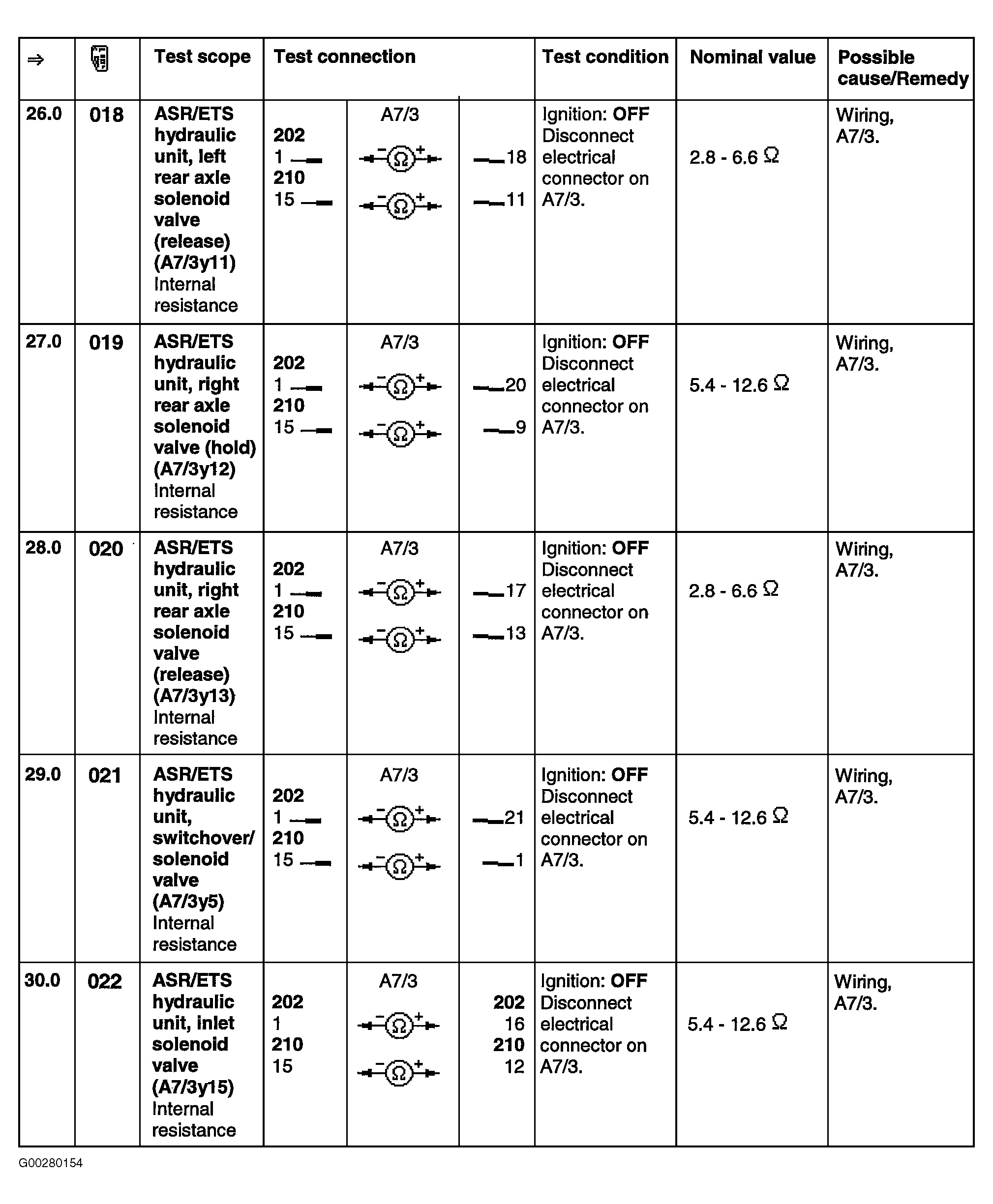

Fig 1: Anti-Lock Brake System (ABS), Acceleration Slip Regulation (ASR), Electronic Traction System (ETS) & Speed Sensitive Power Steering (SPS) Electrical Tests Program (Steps 26.0-30.0)
G00280154Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
