Connector Identification

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 1996 Mercedes-Benz C36, 1996 Mercedes-Benz C280, 1996 Mercedes-Benz C220, 1995 Mercedes-Benz C36, and 1995 Mercedes-Benz C280. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying 38-Pin (X11/4) Data Link Connector Terminal Pin Arrangement
G00275281Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

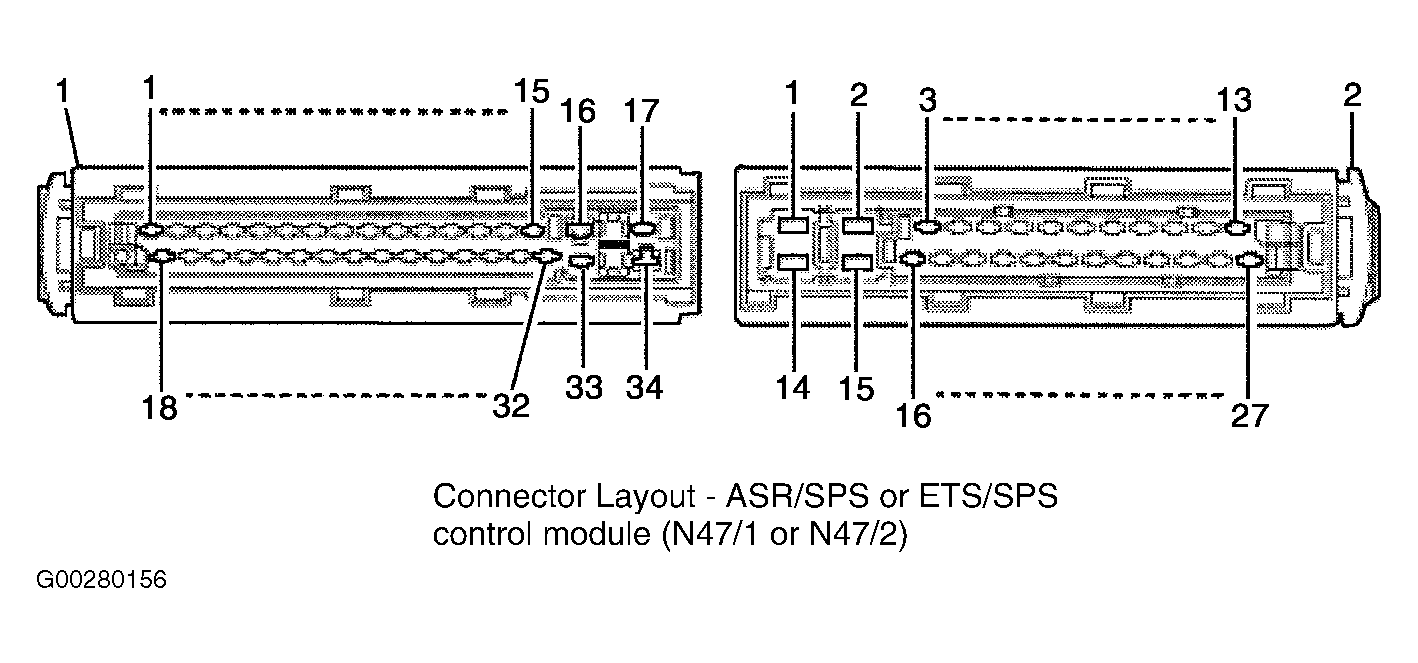

Fig 2: Identifying Connector Layout For ASR/SPS Or ETS/SPS Control Module (N47-1 Or N47-2)
G00280156Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
