COMPONENT LOCATIONS (202 CHASSIS)
| Component | See |
|---|---|

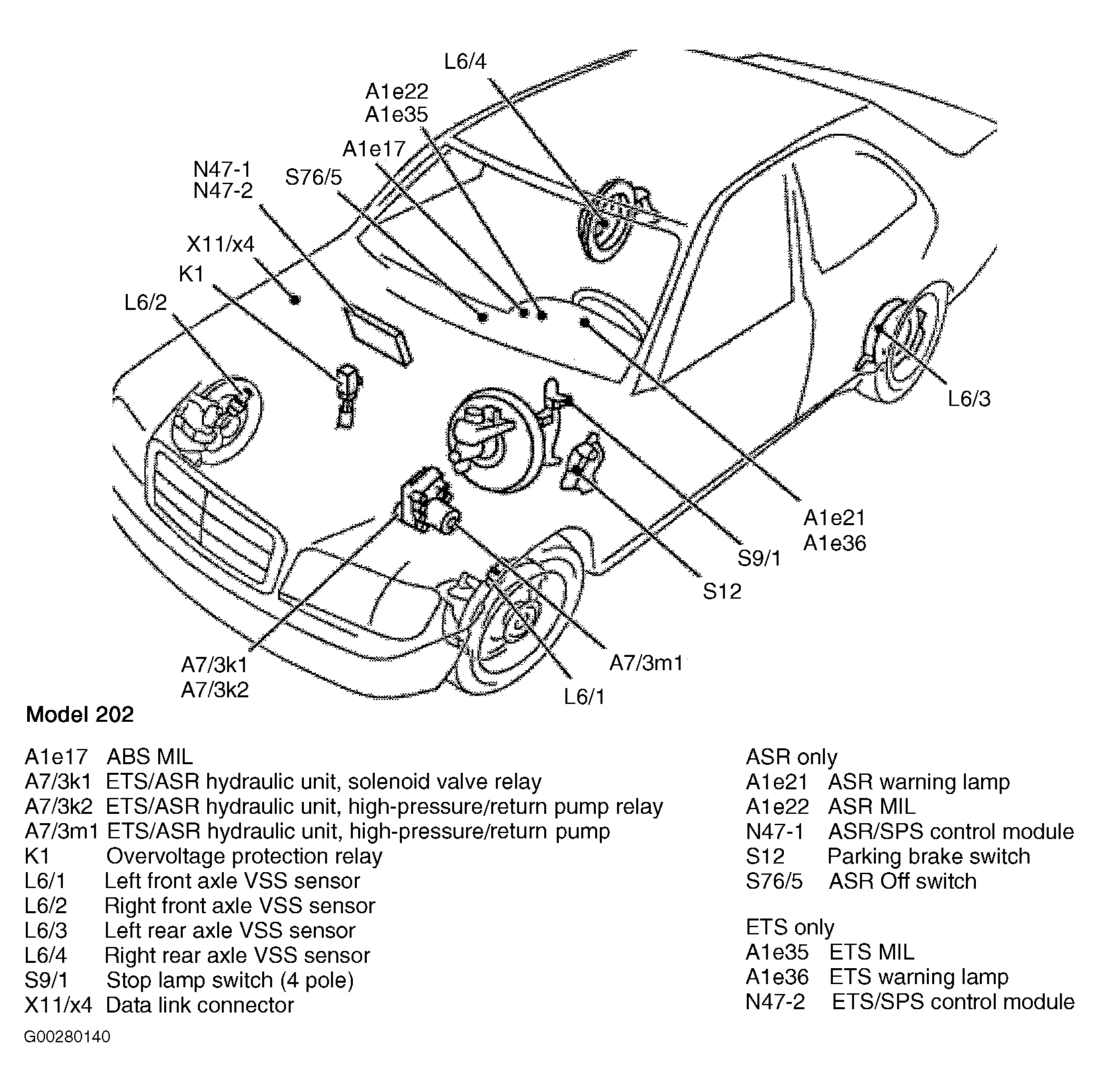

| ABS MIL (A1e17) | Fig 1 |
| ASR MIL (A1e22) | Fig 1 |
| ASR Off Switch (S76/5) | Fig 1 |
| ASR/SPS Control Module (N47-1) | Fig 1 |
| ASR Warning Lamp (A1e21) | Fig 1 |
| Data Link Connector (X11/4) | Fig 1 |
| ETS/ASR Hydraulic Unit, High Pressure/Return Pump (A7/3m1) | Fig 1 |
| ETS/ASR Hydraulic Unit, High Pressure/Return Pump Relay (A7/3K2) | Fig 1 |
| ETS/ASR Hydraulic Unit, Solenoid Valve Relay (A7/3K1) | Fig 1 |
| ETS MIL (A1e35) | Fig 1 |
| ETS/SPS Control Module (N47-2) | Fig 1 |
| ETS Warning Lamp (A1e36) | Fig 1 |
| Left Front Axle VSS Sensor (L6/1) | Fig 1 |
| Left Rear Axle VSS Sensor (L6/3) | Fig 1 |
| Overvoltage Protection Relay (K1) | Fig 1 |
| Parking Brake Switch (S12) | Fig 1 |
| Right Front Axle VSS Sensor (L6/2) | Fig 1 |
| Right Rear Axle VSS Sensor (L6/4) | Fig 1 |
| Stop Lamp Switch (4 Pole) (S9/1) | Fig 1 |
