Section 1 (Air Bag Restraint System): Wiring Diagram

WARNING: This page is about a different car, the 1993 Mercedes-Benz 500SEL and 1993 Mercedes-Benz 500E. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For 500SL, see Fig 1 . Wiring diagrams are not available for other models.

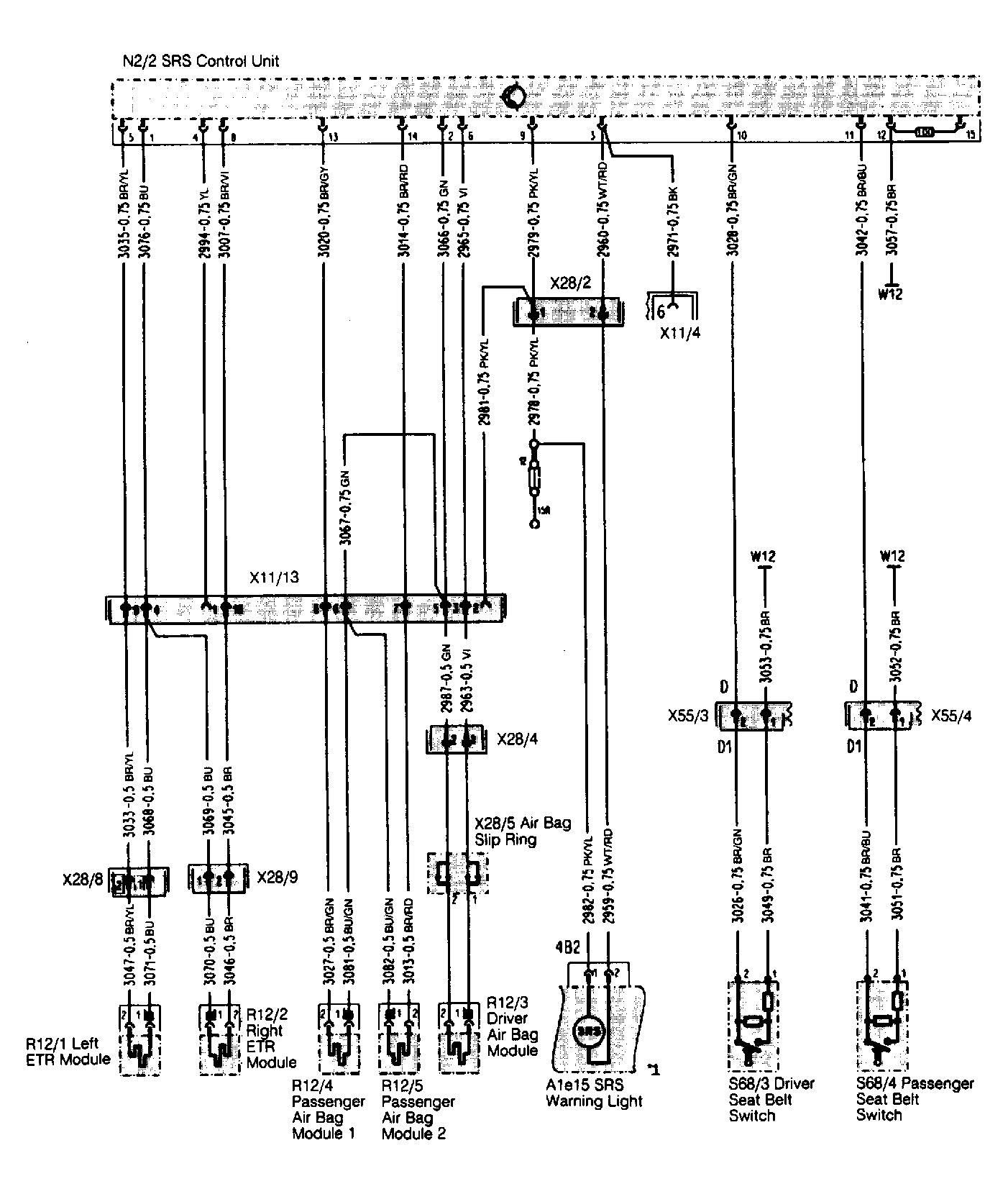

Fig 1: SRS Wiring Diagram (500SL)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA
