Disabling System
WARNING: This page is about a different car, the 1993 Mercedes-Benz 500SEL and 1993 Mercedes-Benz 500E. However, it is still accessible from the selected car via links, so may be relevant.

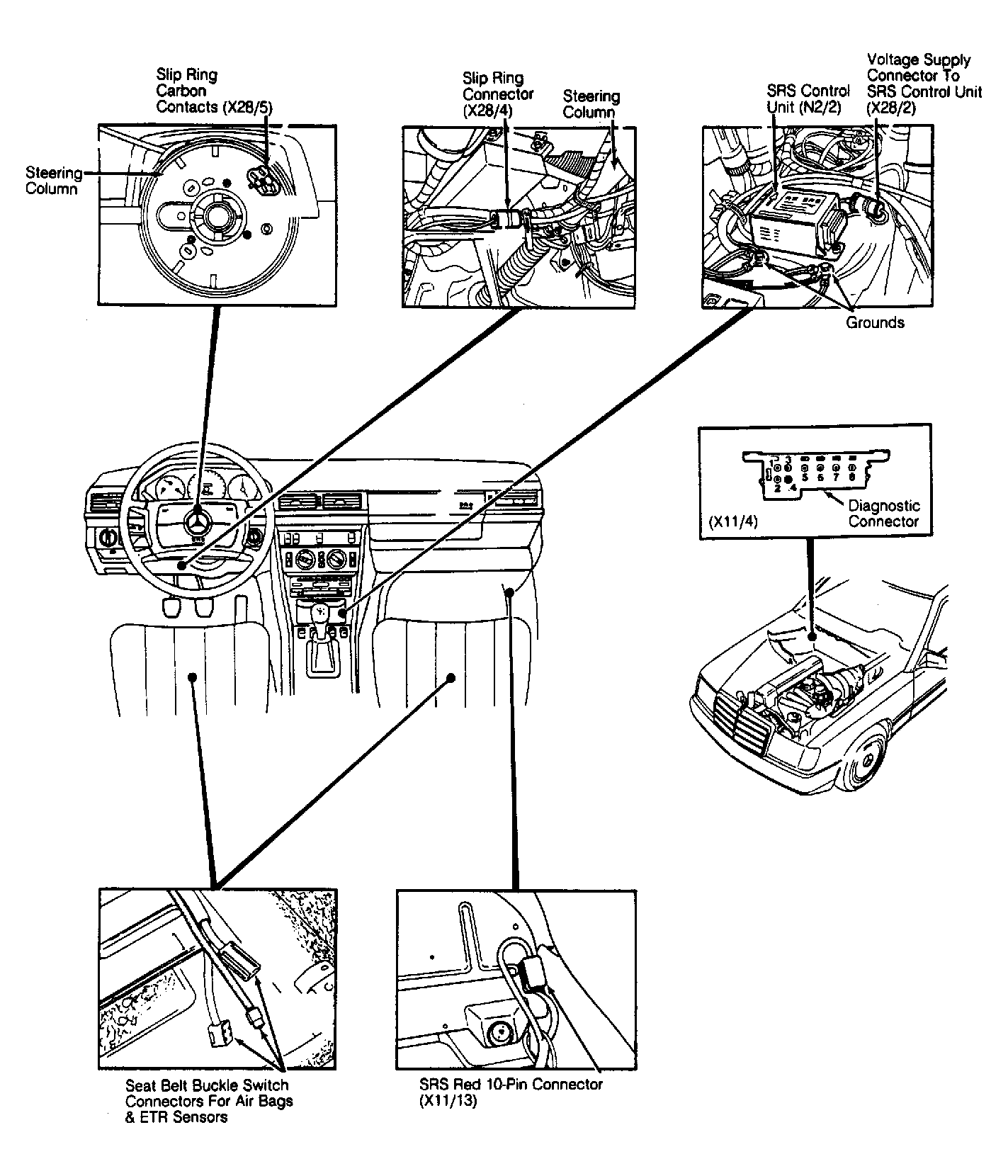

Before proceeding, follow air bag service precautions. See SERVICE PRECAUTIONS . Ensure ignition is off. Disconnect and shield negative battery cable. Locate and disconnect SRS Red connector. See SRS RED CONNECTOR LOCATION table. See Figure -5. System is now disabled.
