Removing and installing drive for seat height adjustment - AR91.29-P-1421B

MODEL 129 for front rear height adjustment drive

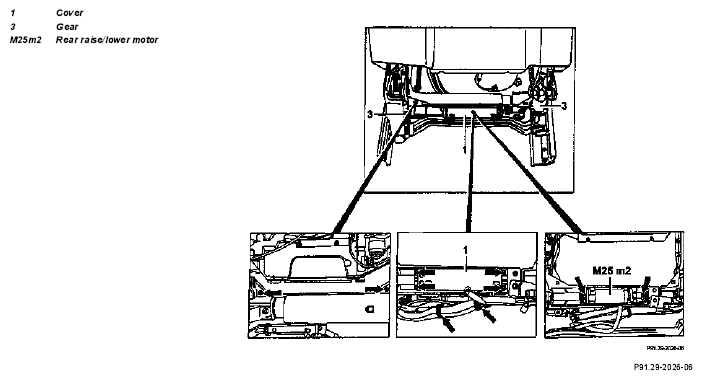

Fig 1: Identifying Seat Height Components
G04689094
REMOVINGINSTALLING Removal, installation
1 Remove driver's seat cushion   ra91001290055x
2 Move driver's seat toward front
3 Release driver's backrest and fold toward front
4 Remove paneling from rear cross member IMPORTANT Unscrew screws from cross member paneling.
5 Remove cover (1) from drive IMPORTANT Unscrew screws from cover (1) (arrows).
6 Remove motor (M25m2) IMPORTANT Open cable straps, disconnect connector, remove flexible drive shafts from motor (arrows) on left and right and pull out motor (M25m2) with rubber mount.
IMPORTANTInstallation  : Before installing motor (M25m2) manually turn both gears (3) to uppermost final position.
7 Installation is carried out in reverse order
8 Perform general function check
