Removing and installing covering on side of backrest frame - RA91001290060X(91-060)

Front seat cushion and backrest cushion removed (91-055) .

Operation no. of operation texts and work units or standard texts and flat rates

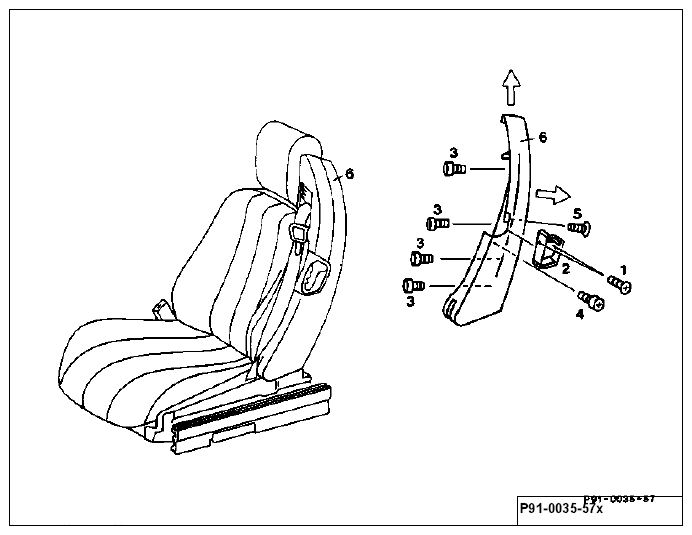

Fig 1: Identifying Backrest Frame Side Components

Screws (1) (2 each)	unscrew.
Handle recess (2)	remove.
Screws (3) (4 each)	unscrew and remove.
Screws (4 and 5)	unscrew.
Covering (6)	remove toward rear while pulling upward. Observe installation note.

Installation note

When installing, insert covering (6) with insert clip at bottom on backrest bearing bolt, then insert at top into cover on head restraint brace.

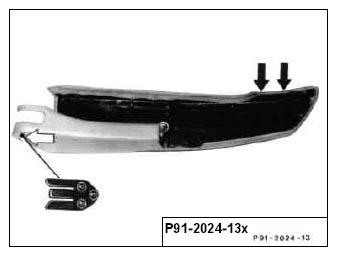

Fig 2: Identifying Cover

Removal, installation

Unscrew screws on handle recess (2 each) and remove handle recess.

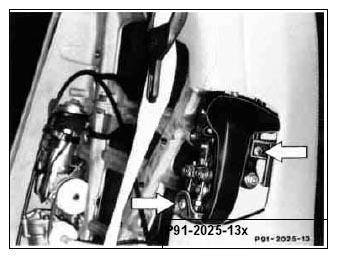

Fig 3: Identifying Handle Recess Screws
Unscrew screws on backrest frame (4 each) and remove.

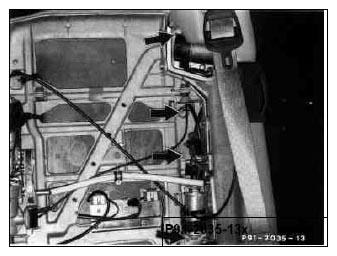

Fig 4: Identifying Backrest Frame Screws
Unscrew screws in area of backrest lock (2 each).
Remove covering from backrest frame toward rear and upward.

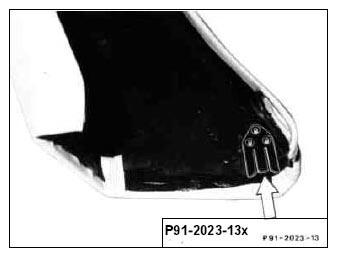

Fig 5: Identifying Backrest Lock Screws
Insert covering with insert clip at bottom on backrest bearing bolts, then at top into cover on head restraint brace (arrow).
Continue to reinstall in opposite order.

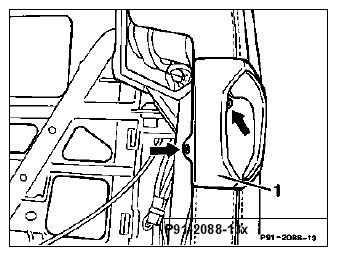

Fig 6: Locating Head Restraint Brace
