Removing and installing timer - AR83.70-P-5892C

MODEL 129 as of 1.6.97 with CODE (228) Stationary heater

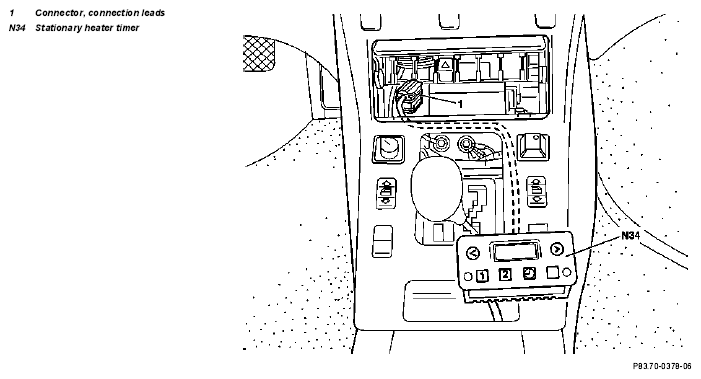

Fig 1: Identifying Timer Components

	Removal, installation
1	Connect quiescent current retention unit
2	Disconnect battery		ra54001400003x
3	Remove cover on center console	Remove cover until connector (1) is exposed and timer (N34) can be pressed out	ra68001290200x
4	Disconnect connector (1) for timer (N34)
5	Press timer (N34) out of cover
6	Reinstall in opposite order
7	Perform stationary heater diagnosis (STH), function check	Function only until vehicle heater blower stops running	AD83.70-P-3003A
