Removing and installing refrigerant pressure sensor - AR83.30-P-5430C

MODEL 129 as of 1.6.96 with CODE (581a) Air conditioning (automatic)

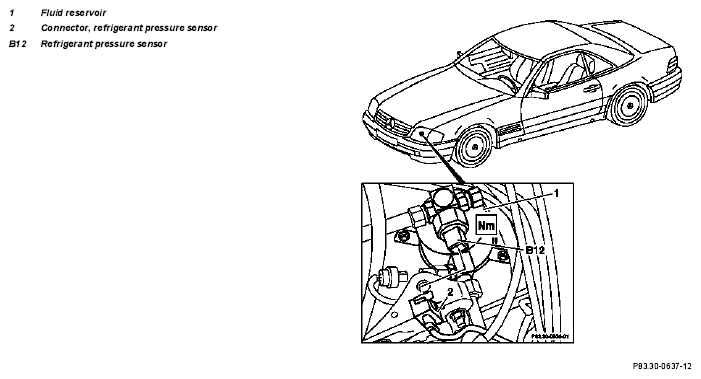

Fig 1: Identifying Refrigerant Pressure Sensor Components

	Removal, installation
1	Empty air conditioning (recycle)	Installation  : Evacuate air conditioning system, recharge, check for leakage and proper function by allowing engine to idle only for first 4 minutes.
2	Unhook and disconnect connector (2) on refrigerant pressure sensor (B12)
3	Remove refrigerant pressure sensor (B12) from fluid reservoir (1)	Plug opening on fluid reservoir (part set no. 1408300127) Installation  : Replace sealing rings and moisten with compressor oil.
			*BA83.30-P-1007-01A
4	Reinstall in opposite order

AIR CONDITIONING

Number	Designation		Model 129
BA83.30-P-1007-01A	Refrigerant pressure sensor on fluid reservoir	Nm	12
