Removing and installing fuel metering pump - AR83.70-P-5652C
MODEL 129 as of 1.6.97 with CODE (228) Stationary heater
| Removal, installation | |||
| 1 | Remove cover for fuel pump assembly at right rear | ||

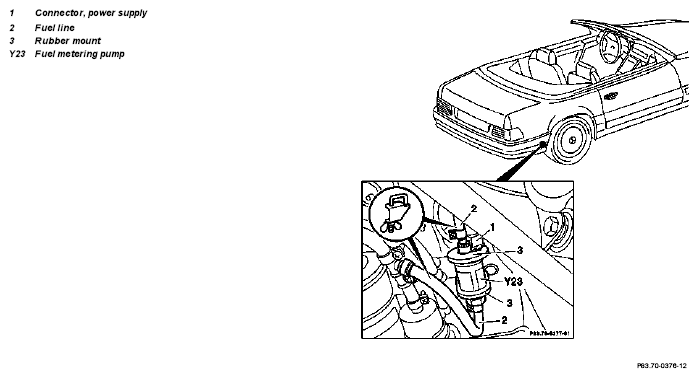

| 2 | Clamp off fuel lines (2) | Figure | |
| 3 | Disconnect fuel lines (2) from fuel metering pump (Y23) | ||
| 4 | Remove fuel metering pump (Y23) from rubber mounts (3) | ||
| 5 | Unclip connector (1) for electrical connection cable | ||
| 6 | Install in reverse order | ||
| 7 | Stationary heater diagnosis Check for proper function |
AD83.70-P-3003A | |
| 8 | Check emission values, adjust, if necessary | AR83.70-P-1177C |
