Removing and installing auxiliary fan series resistor - AR83.30-P-5370C
MODEL 129 as of 1.1.94 up to 31.5.96 with CODE (580) Air conditioning or, for USA, Tempmatic with CODE (581a) Air conditioning (automatic)
| Removal, installation | |||

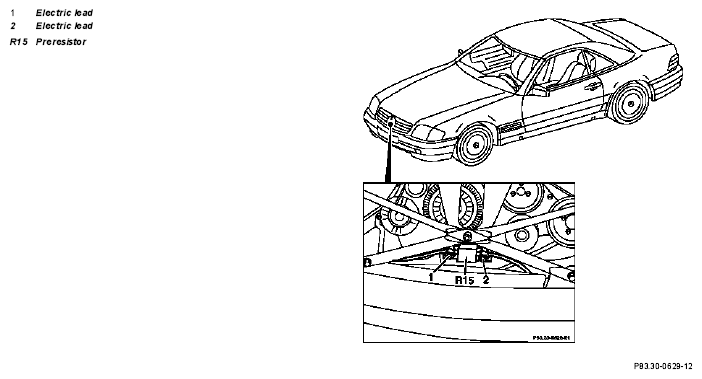

| 1 | Remove electrical leads (1, 2) on preresistor (R15) | ||
| 2 | Remove preresistor (R15) on cross brace | ||
| 3 | Reinstall in opposite order | ||
| 4 | Check for proper function |
