Removing and installing auxiliary fan - AR83.40-P-6360C
MODEL 129 as of 1.6.96 with CODE (581a) Air conditioning (automatic)
  |
Removal, installation |
|
|
| 1 |

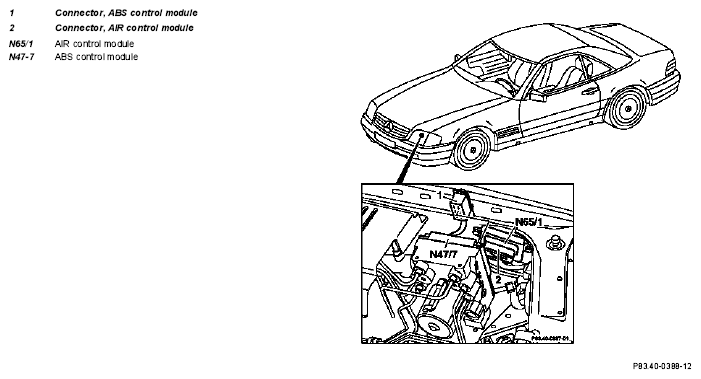

Unhook and disconnect connector (1) on ABS control module (N47-7) |
|
|
| 2 |
Unhook and disconnect connector (2) on AIR control module (N65/1) |
|
|
| 3 |
Remove AIR control module (N65/1) |
|
|
| 4 |
Reinstall in opposite order |
|
|
