Stationary heater test of electrical system automatic air conditioning pushbutton control module actuation - AD83.70-P-6001-08A

Model 129 as of 01.06.97

Model 163 as of 01.09.01

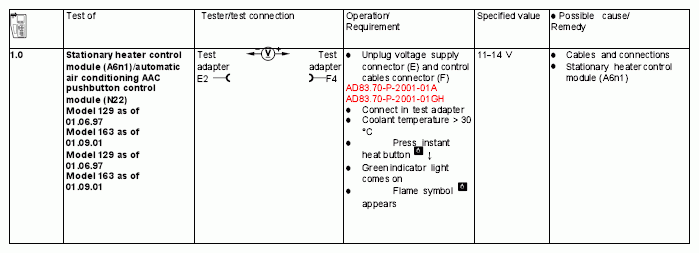

Fig 1: Stationary Heater Test Of Electrical System Automatic Air Conditioning Pushbutton Control Module Actuation
G04688665
