Stationary heater unit connector assignment - AD83.70-P-2001-01GH

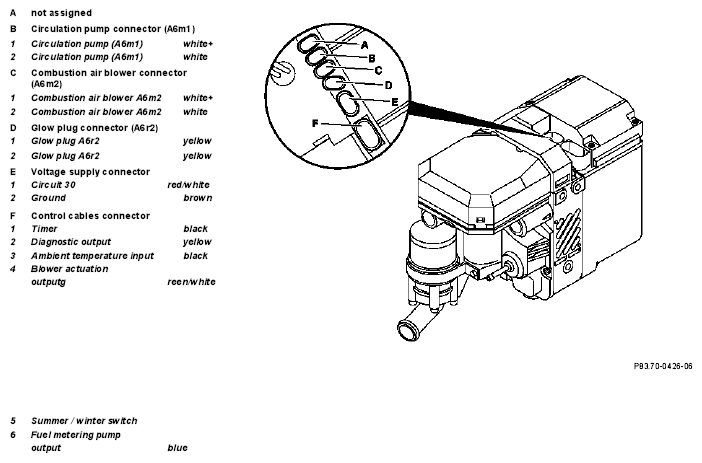

Fig 1: Identifying Stationary Heater Unit Connector Assignment

G04688655
