Removal, installation |
|
|
| 1 |
Remove door liner |
|
ra72001290100x |
| 2 |
Close side windows |
|
|
| 3 |
Disconnect connector from loudspeaker |
|
|
| 4 |
Remove loudspeaker with mount |
|
|
| 5 |
Remove air duct |
|
|
| 6 |
Loosen door foil in front and lower area |
 Installation
: Replace damaged door foil. |
|
| 7 |

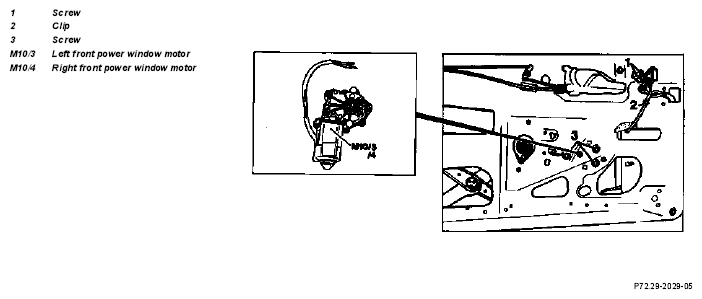

Remove power window motor (M10/3, M10/4) |
Protect power window motor from falling
Unscrew screws (1), unclip clips (2) and unscrew screws (3).
Installation
: Grease gear on motor lightly. When installing observe hole pattern for mounting. |
*BA72.29-P-1001-01A |
| 8 |
Install in opposite order |
|
|
