Removing and installing base in soft top compartment - AR77.30-P-2000A
MODEL 129.058 /060 /061 /063 /066 /067 /076

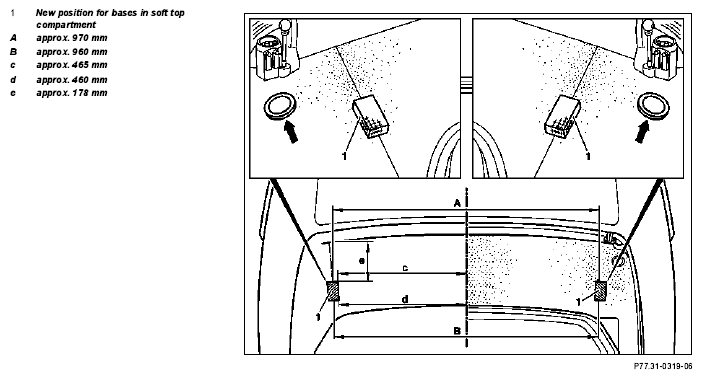

Determine soft top compartment center above funnel (arrows).
MODIFICATION NOTES
| 14.10.99 | Replaces SI 77/39 dated 21.9.96 | Remove SI 77/39 from your file. |
| Removing, installing | |||
| 1 | Remove paneling above previous base. | ||
| 2 | Remove base. | ||
| 3 | Glue paneling back on. | ||
| 4 | Remove protective foil from base. | ||
| 5 | Glue base to new position on paneling. |
PARTS ORDERING NOTES
| Part no. | Designation | Quantity |
|---|---|---|
| 129 694 03 97 | Bases | 2 |
