Checking, adjusting gap between hard top and windshield molding strip - AR77.50-P-4400A

MODEL 129

Figure 1

Fig 1: Checking Gap Between Hard Top And Windshield Molding Strip

Figure 2

Fig 2: Checking Distance From A-Pillar Rail To Rail On Side Of Hard Top

Figure 3

Fig 3: Locating Sealing Lip

Figure 4

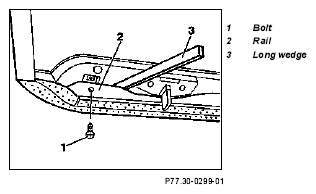

Fig 4: Locating Screw From Hard Top And Shim Rail

Figure 5

Fig 5: Locating Press Sealant In Between Seal And Hard Top

	Inspecting
1	Check gap (A) between hard top and windshield molding strip in area of lock pins, adjust if applicable	For dimension A see figure 1.
2	Check distance (B) from A-pillar rail to rail on side of hard top, if applicable adjust rail at hard top	For dimension B see figure 2.
3	Check transition for seals in area of separating joint between A-pillar and hard top.	The sealing lip on the A-pillar should extend approx. 1 mm over the seal on the hard top. When the window is closed the separating joint is covered by the lip. Correct seals, if applicable (figure 3, arrows).
4	Unlock hard top and shim cross member above windshield	Use suitable shim (approx. 300 mm thick).
5	Unscrew screw (1) from hard top
6	Shim rail (2)	Long wedge (figure 3)	Figure
N	Pull seal out at corner of hard top
8	Press sealant in between seal and hard top (figure 5, arrows)		*BR00.45-Z-1007-02A
9	Install seal and screw on rail
10	Lock hard top and remove sealant coming out	Use naphtha.

Fig 6: Identifying Long Wedge (115 589 03 59 00)

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1007-02A	Adhesives	A 005 989 61 71
