Connector Identification: Notes

To identifying diagnostic data link connectors. See Fig 1 -Fig 3 .

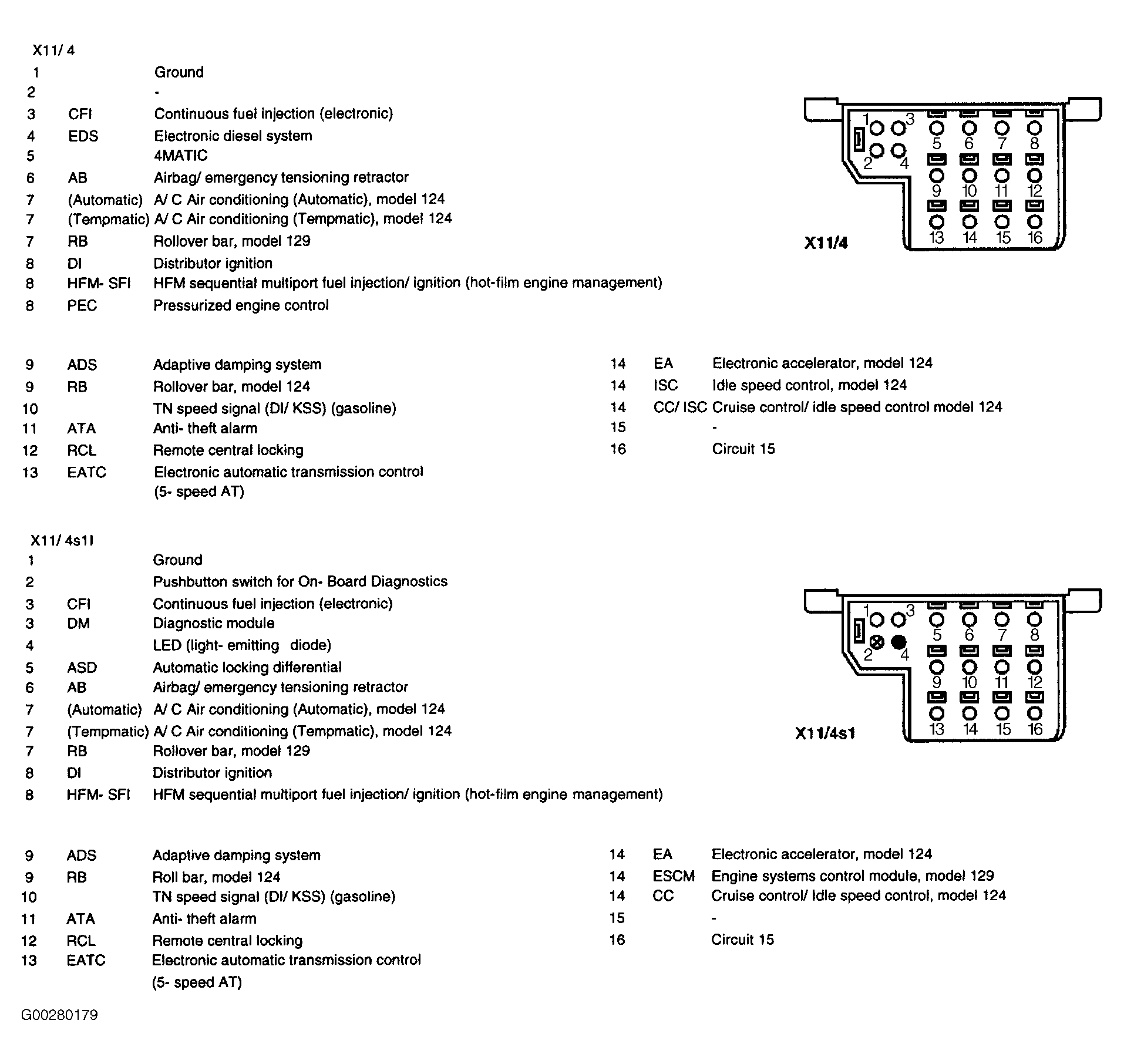

Fig 1: Identifying 16-Pin (X11/4 & X11/4s1) Data Link Connector Terminal Pin Arrangement
G00280179Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

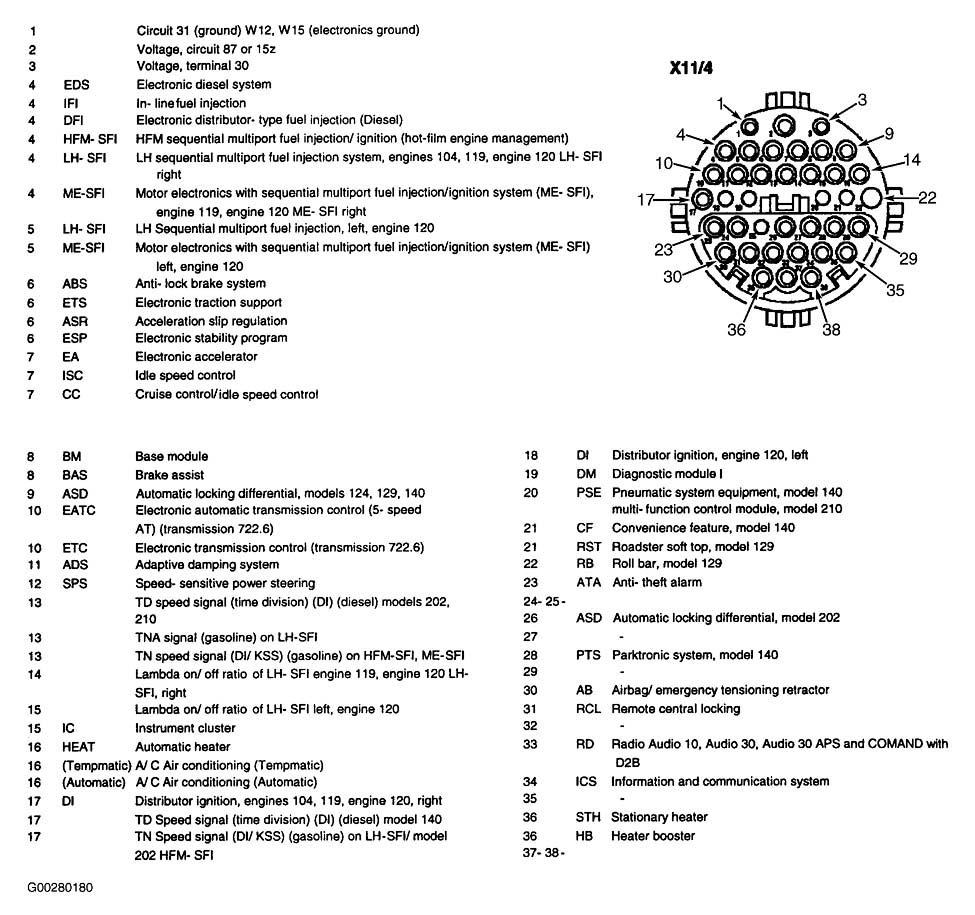

Fig 2: Identifying 38-Pin (X11/4) Data Link Connector Terminal Pin Arrangement
G00280180Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

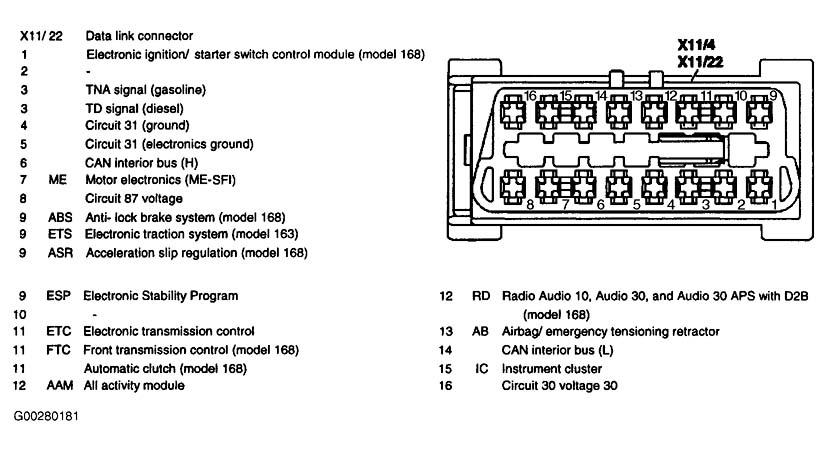

Fig 3: Identifying 16-Pin (X11/22) Data Link Connector Terminal Pin Arrangement
G00280181Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
