LIMIT SWITCH (A24s OR A25s - TOP COMPARTMENT COVER CLOSED & LOCKED): Notes

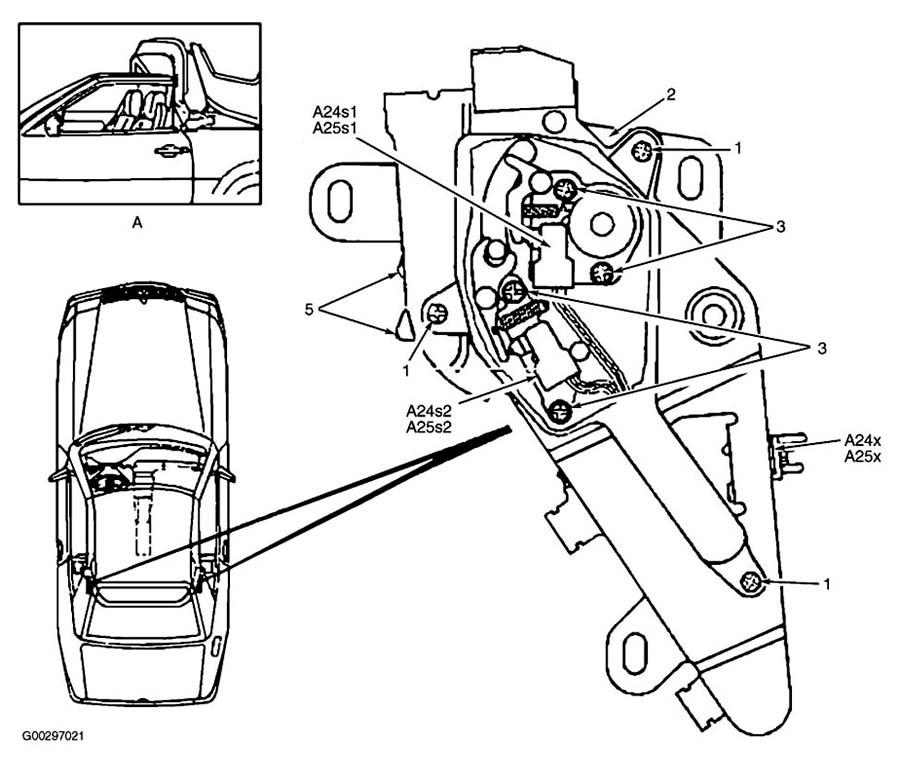

NOTE: A released catch can be locked by pressing the rotating lock (5) down with a screwdriver (overcoming initial catch), until it can be locked with the top wrench (vehicle tool kit). See Figure .

NOTE: During removal and installation procedures the numbers in parentheses, within steps, correspond to numbers inside the illustration(s). The word arrow(s) in parentheses, within steps, is used to point out specific components or movement.
