Setting Up

WARNING: The rear storage area should never be occupied by passengers since vehicle is a 2 seater. Furthermore, with wind screen in place there is a risk of injury, should roll bar be deployed.

Push top of wind screen fully forward against internal stop. See Fig 1 .

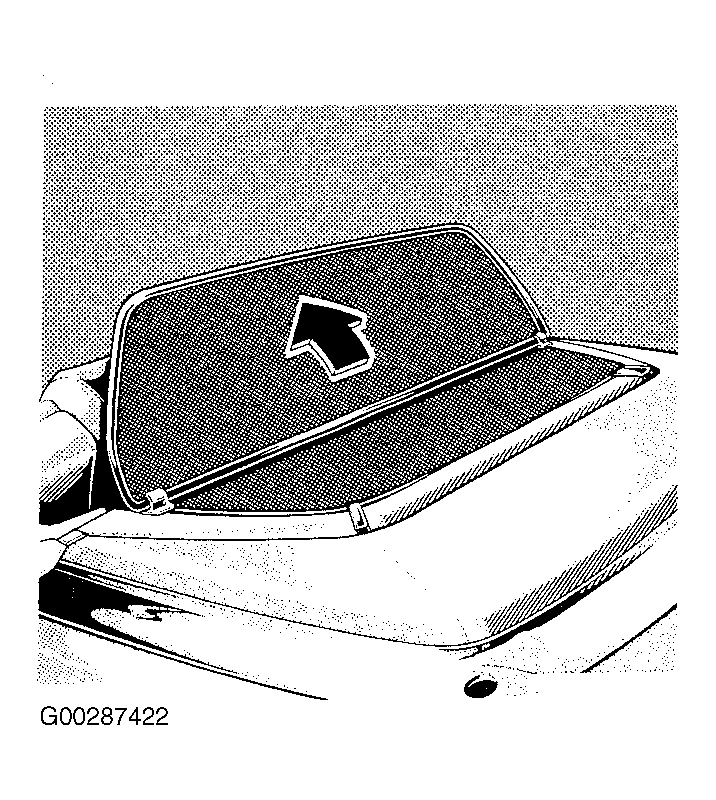

Fig 1: Setting Up Windscreen
G00287422Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
