Wind Screen (Roll Bar): Removal

NOTE: During removal and installation procedures the numbers in parentheses, within steps, correspond to numbers inside the illustration(s). The word arrow(s) in parentheses, within steps, is used to point out specific components or movement.

Fold down top of wind screen.
Raise roll bar using switch on center console.
Disconnect attachment strap latches by squeezing latch. See Fig 1 .
Lower roll bar partially.
Pull wind screen down (5) and remove from roll bar. See Fig 2 .

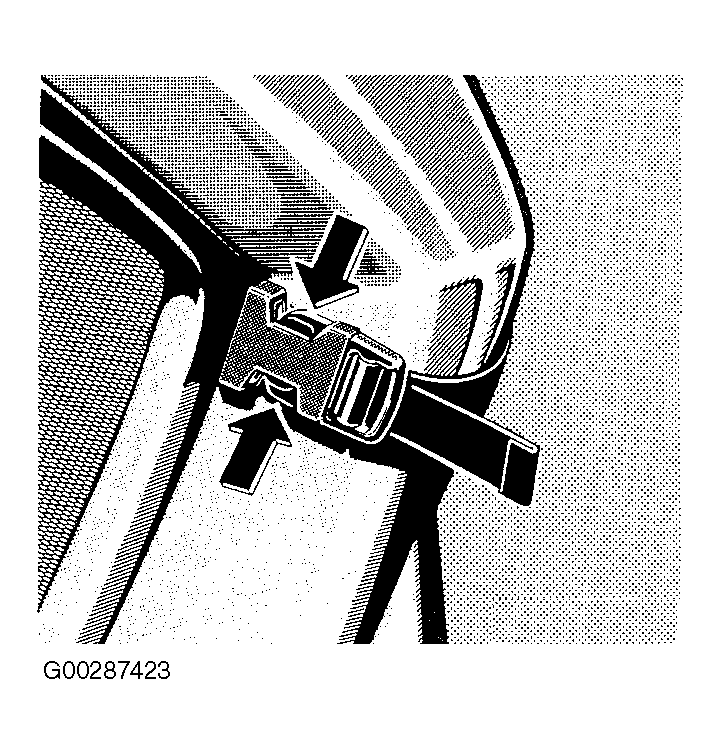

Fig 1: Removing Windscreen From Roll Bar (1 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

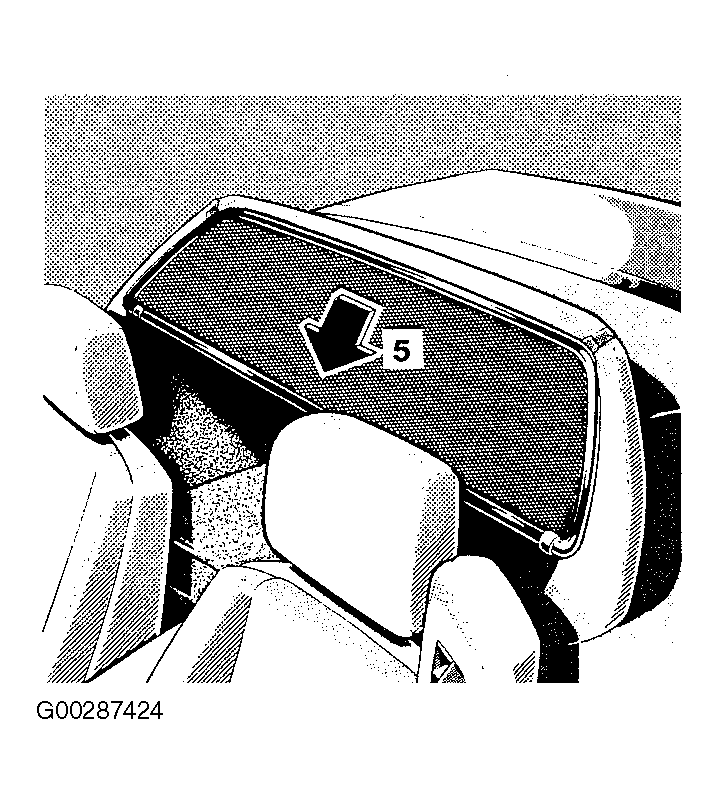

Fig 2: Removing Windscreen Form Roll Bar (2 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
