Wind Screen (Roll Bar): Installation

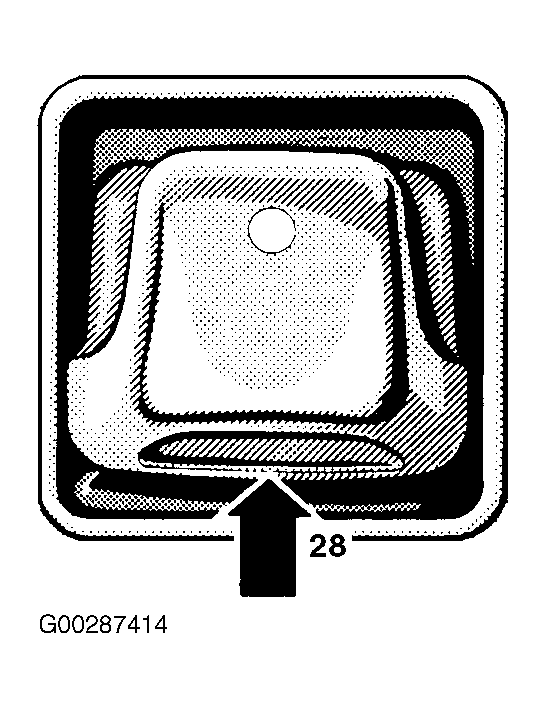

Raise roll bar partially using switch on center console. See Figure and Figure .
Position top end of wind screen at bottom of roll bar. The hooks at bottom of wind screen must point rearward.
Slide wind screen up into roll bar (1), using care not to get attachment straps (2) caught. See Fig 1 .
Raise roll bar completely.
Wrap attachment straps around roll bar and insert tabs into latches (3). Lower roll bar. See Fig 2 .
Tighten straps (4). See Fig 2 .
Lower roll bar.

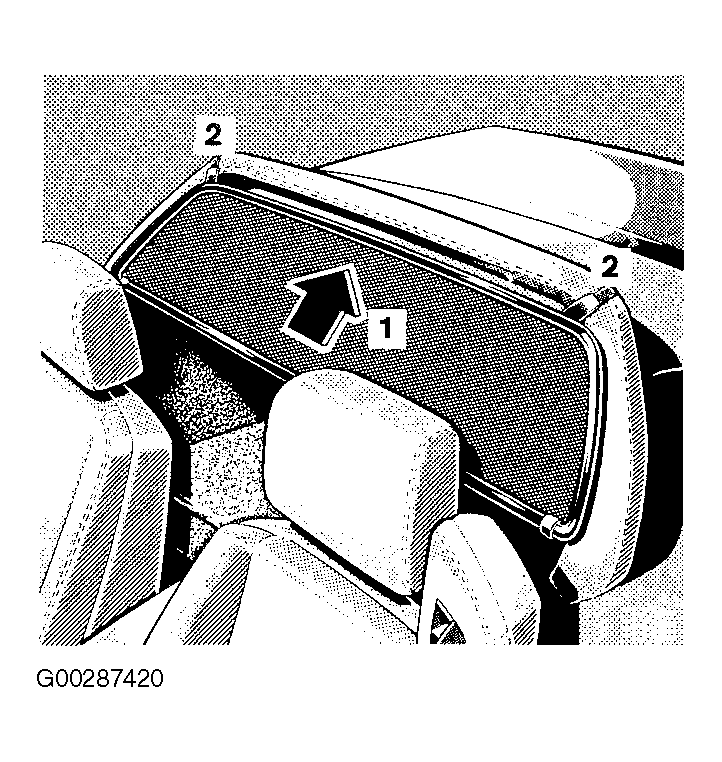

Fig 1: Installing Windscreen Onto Roll Bar (1 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

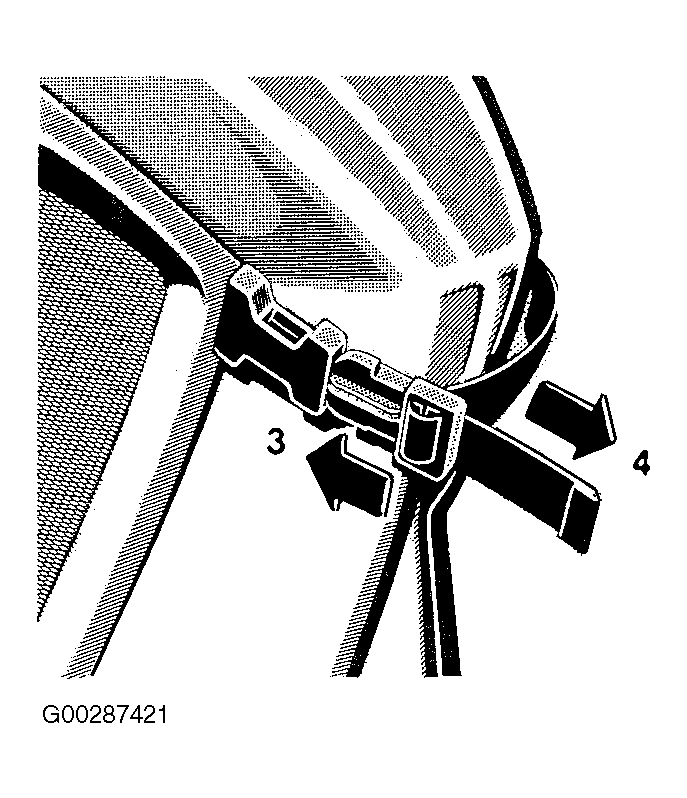

Fig 2: Installing Windscreen Onto Roll Bar (2 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
