Hydraulic Testing - Soft Top Up (Section 34.1)

NOTE: Observe Warnings, Cautions and Notes under HYDRAULIC TEST PROGRAM - TEST SOFT TOP UP (SECTION 34) , before test steps are performed.

NOTE: For aid in using diagnostic test steps, see USING DIAGNOSTIC CHARTS .

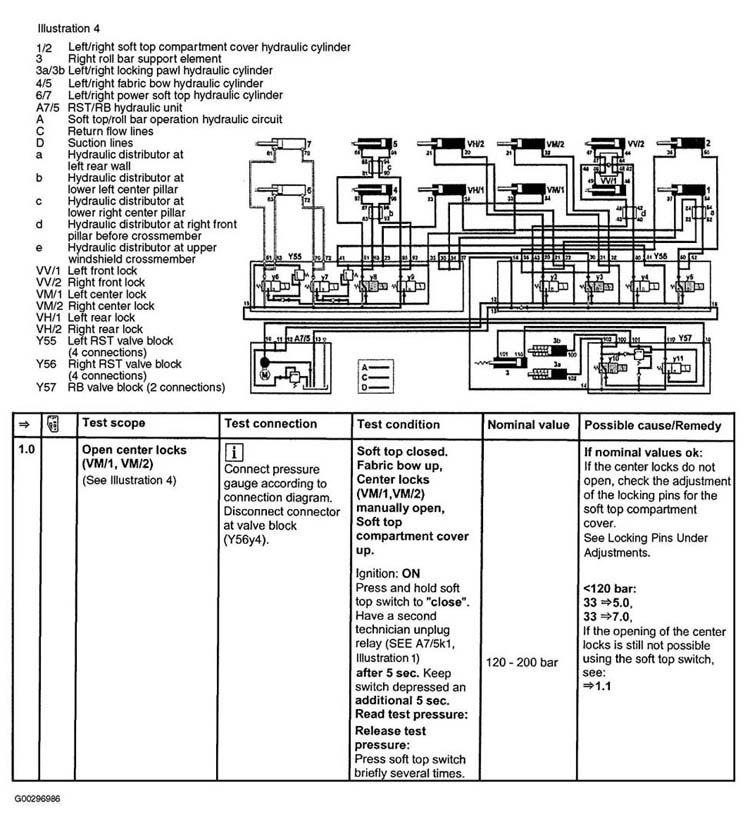

Fig 1: Soft Top Up "Open Center Catches" (Test Step 1.0)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

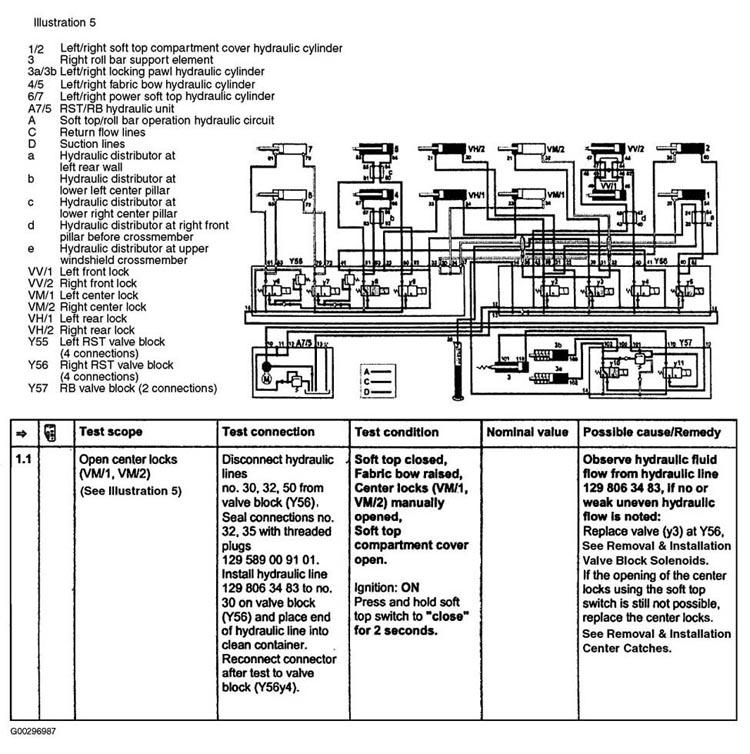

Fig 2: Soft Top Up "Open Center Catches" (Test Step 1.1)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

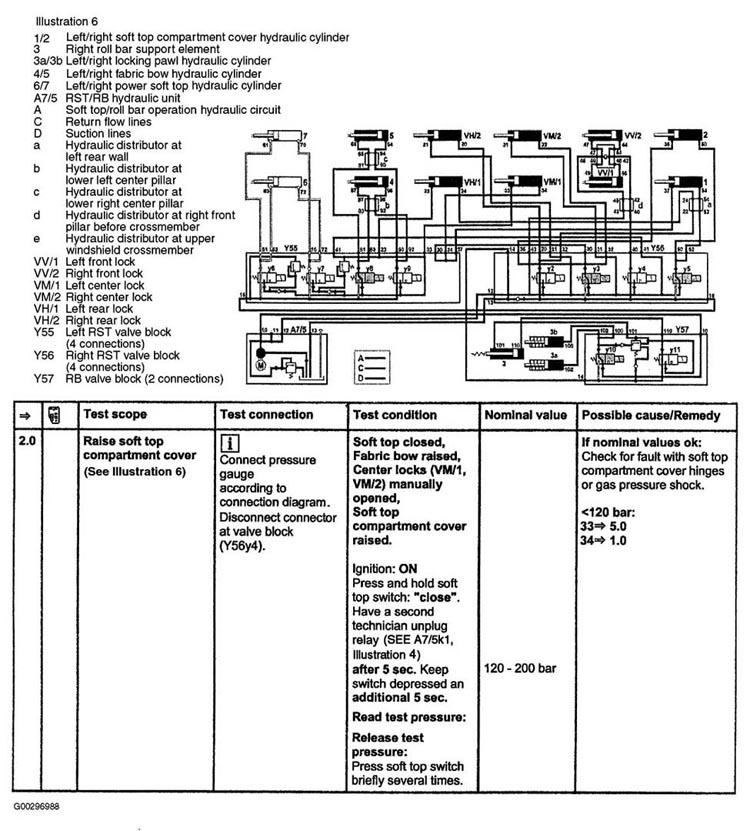

Fig 3: Soft Top Up "Raising Soft Top Compartment Cover" (Test Step 2.0)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 4: Soft Top Up "Close Soft Top" (Test Step 3.0)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

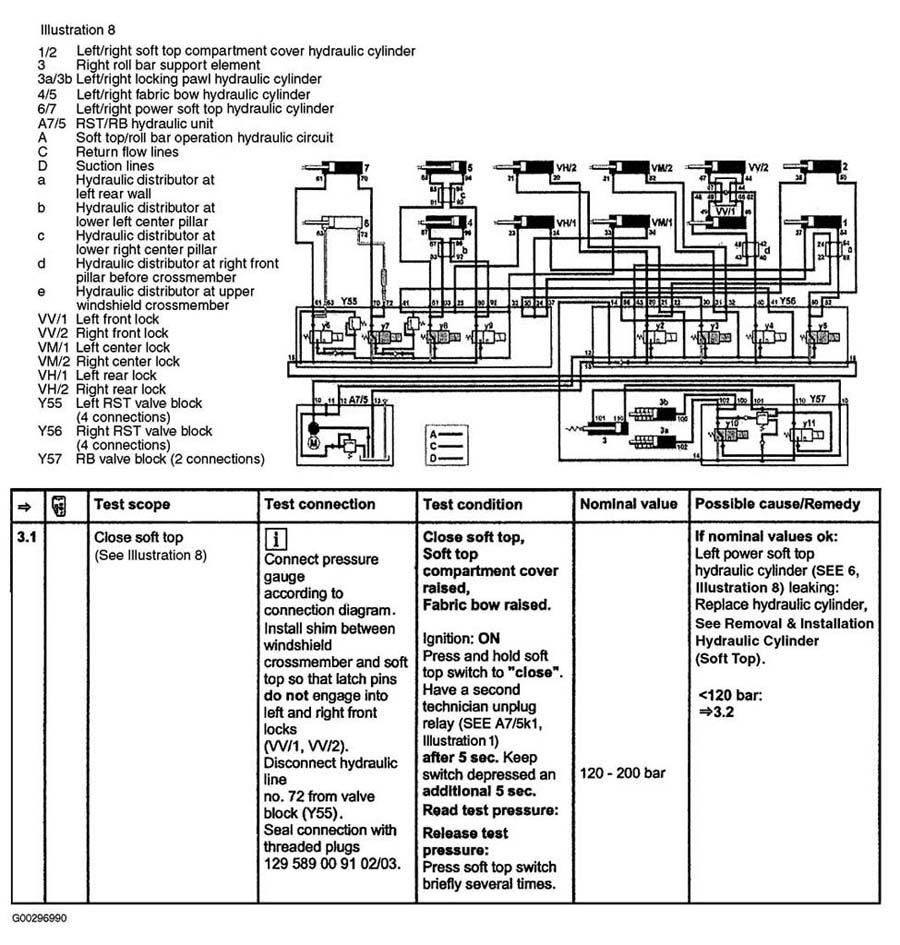

Fig 5: Soft Top Up "Close Soft Top" (Test Step 3.1)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

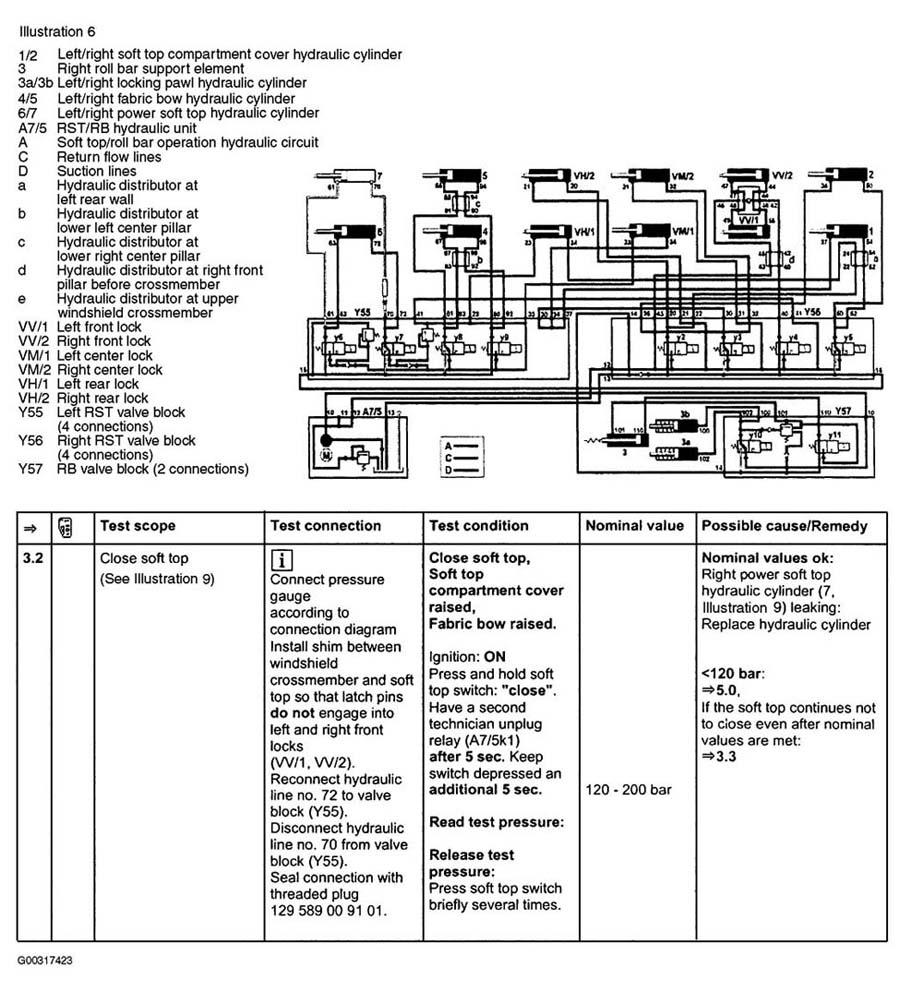

Fig 6: Soft Top Up "Close Soft Top" (Test Step 3.2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

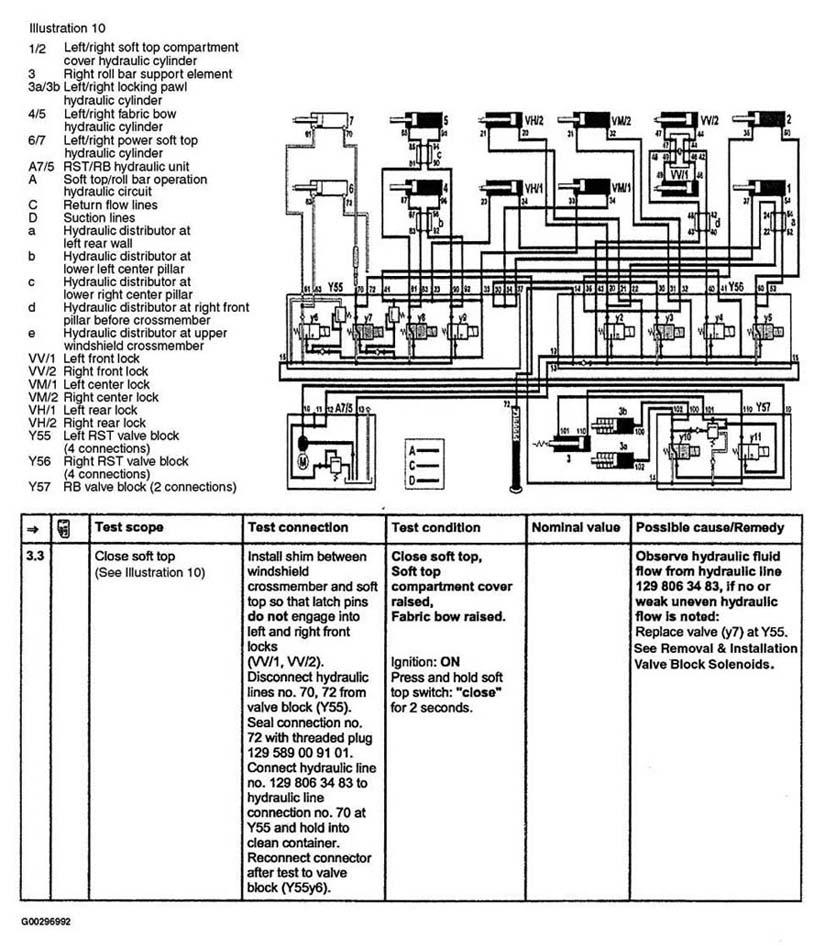

Fig 7: Soft Top Up "Close Soft Top" (Test Step 3.3)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 8: Soft Top Up "Lock Front Catches" (Test Step 4.0)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

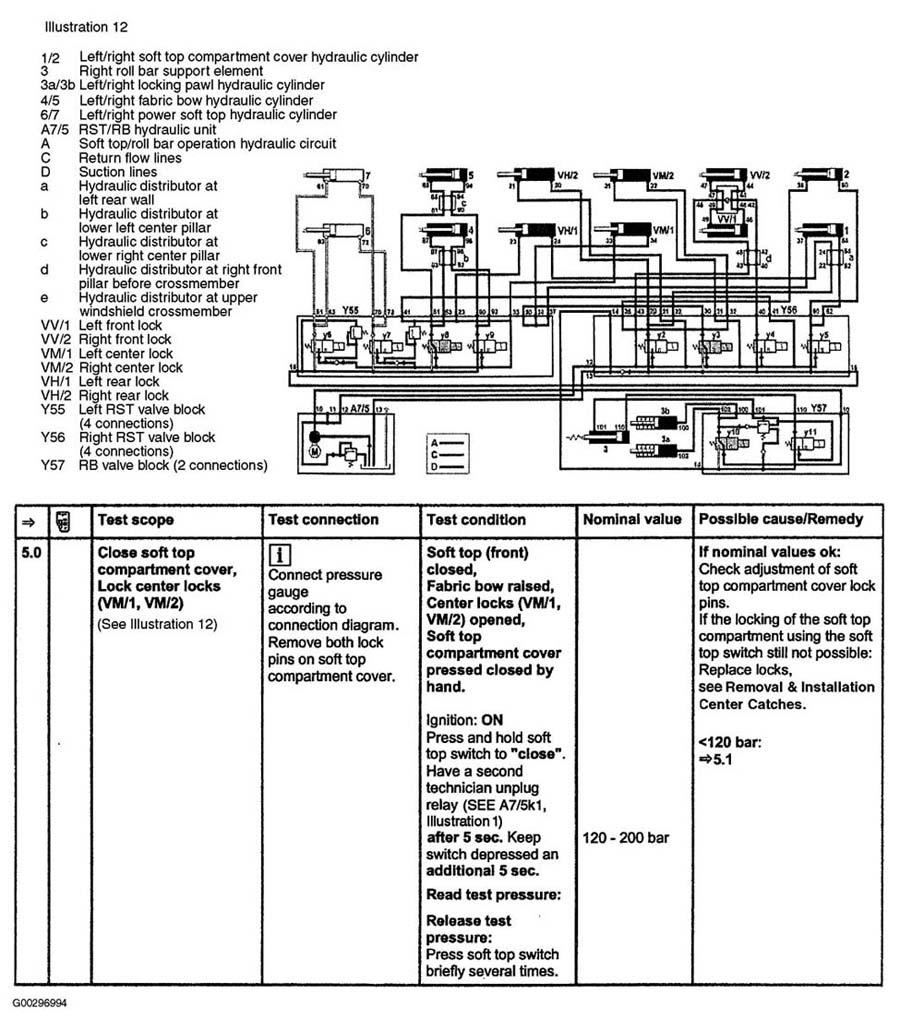

Fig 9: Soft Top Up "Close Soft Top Compartment Cover & Lock Center Catches" (Test Step 5.0)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

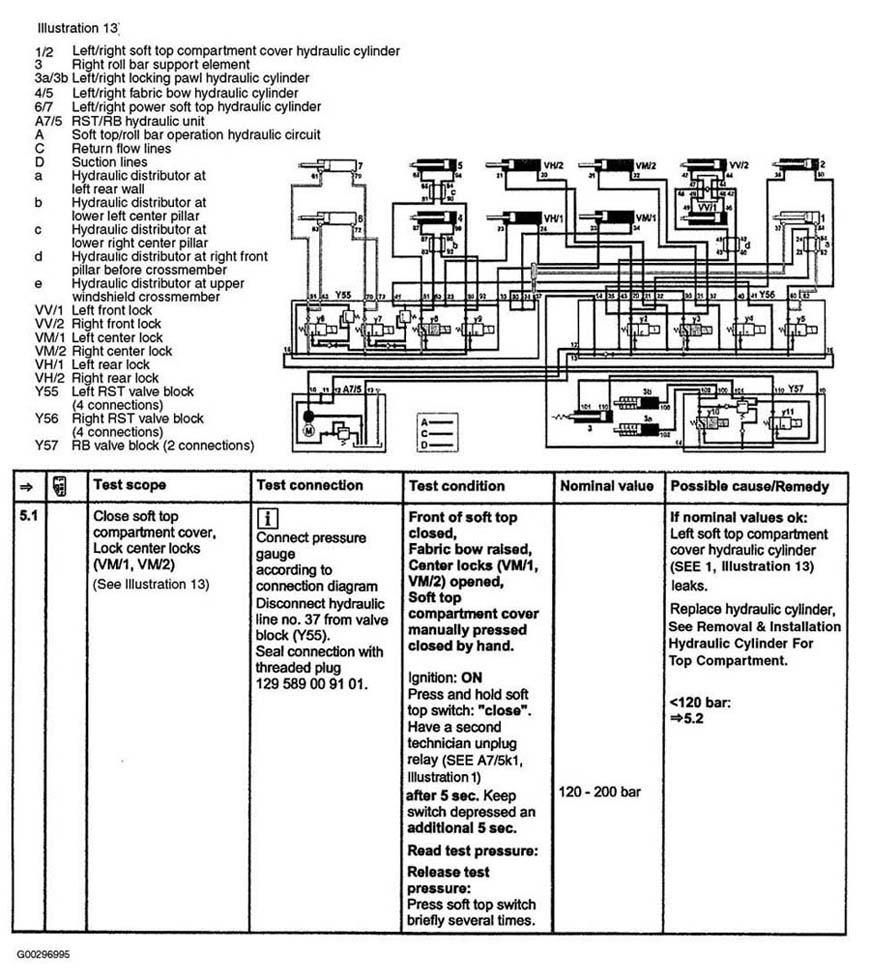

Fig 10: Soft Top Up "Close Soft Top Compartment Cover Lock Center Catches" (Test Step 5.1)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

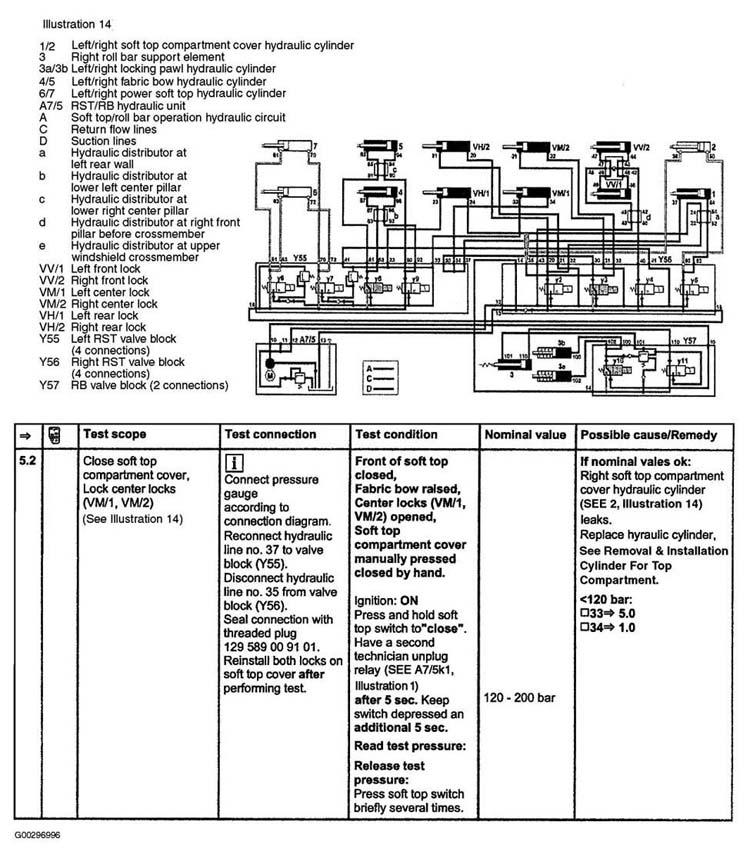

Fig 11: Soft Top Up "Close Soft Top Compartment Cover Lock Center Catches" (Test Step 5.2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

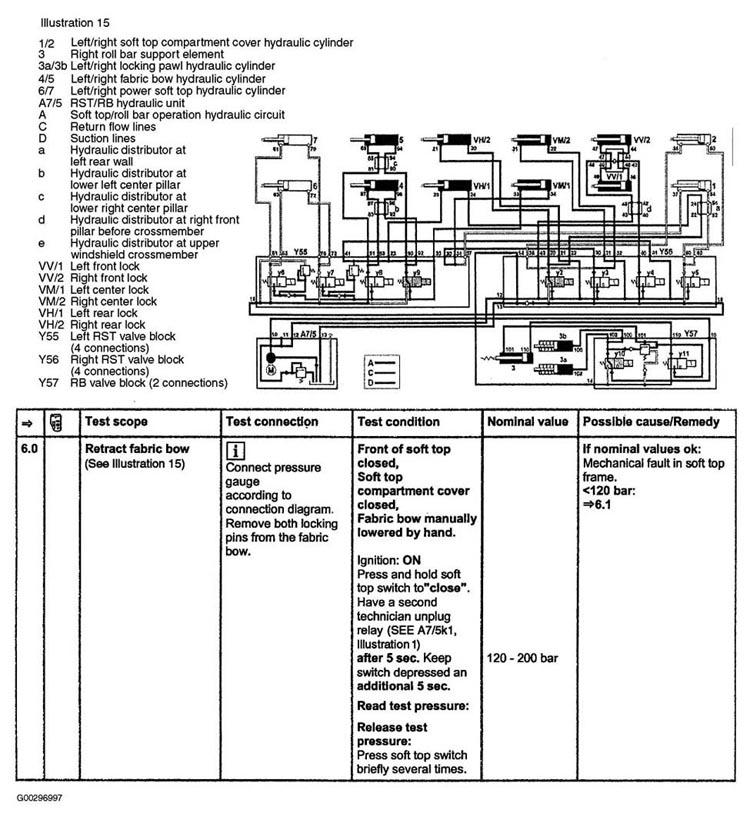

Fig 12: Soft Top Up "Retract Fabric Bow" (Test Step 6.0)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

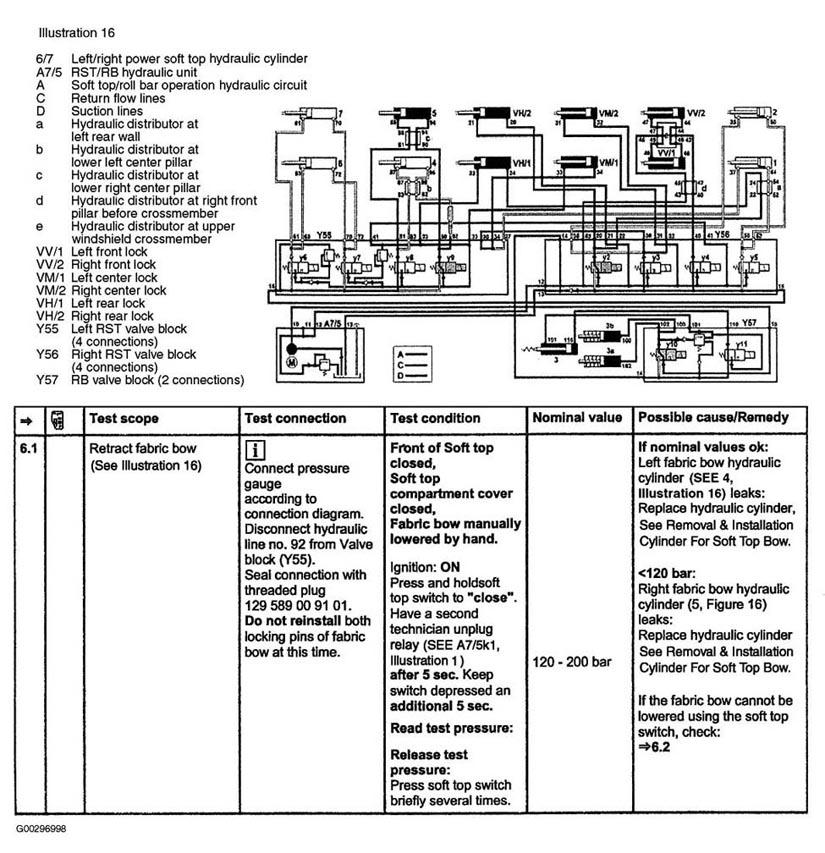

Fig 13: Soft Top Up "Retract Fabric Bow" (Test Step 6.1)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

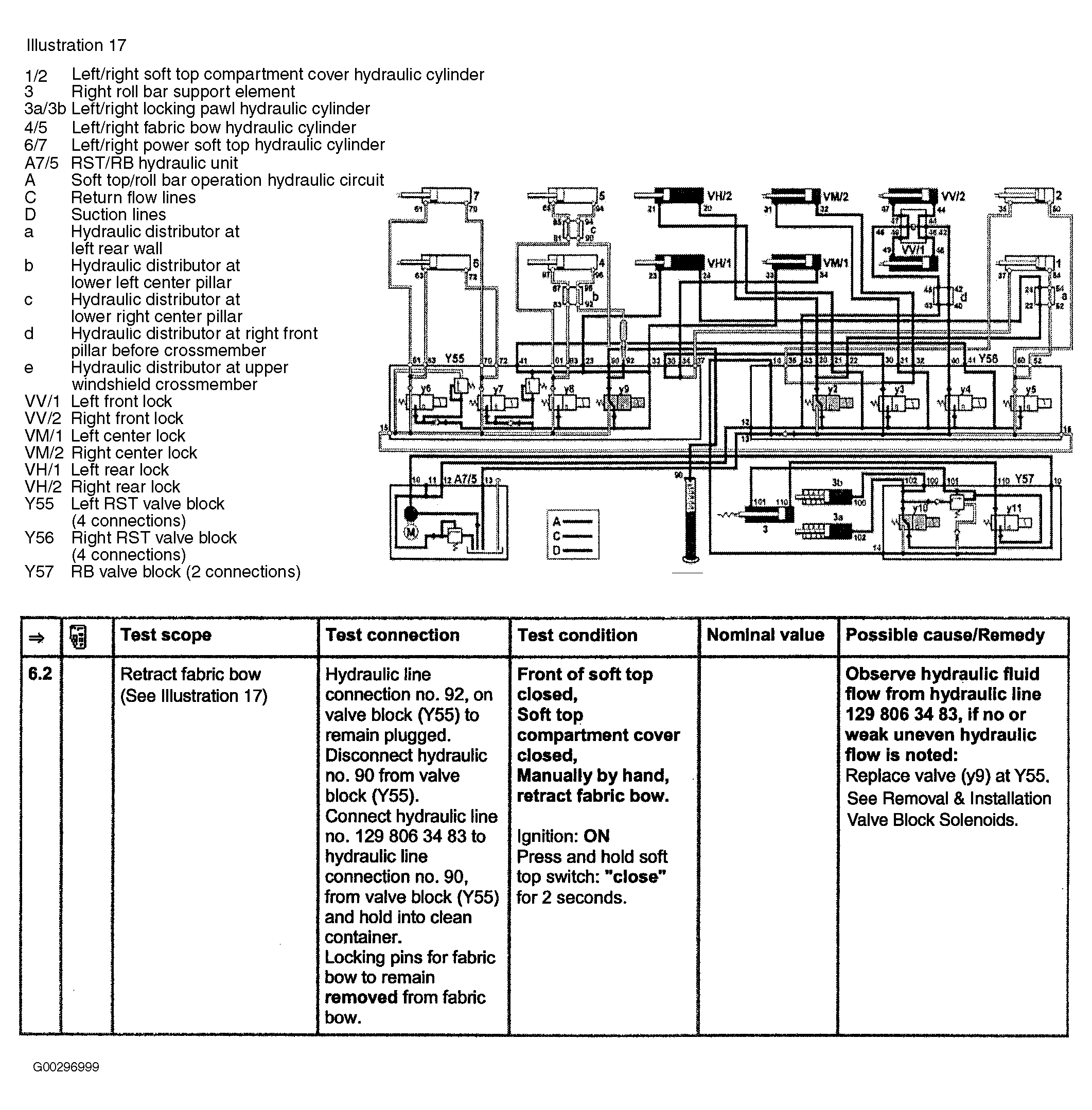

Fig 14: Soft Top Up "Retract Fabric Bow" (Test Step 6.2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

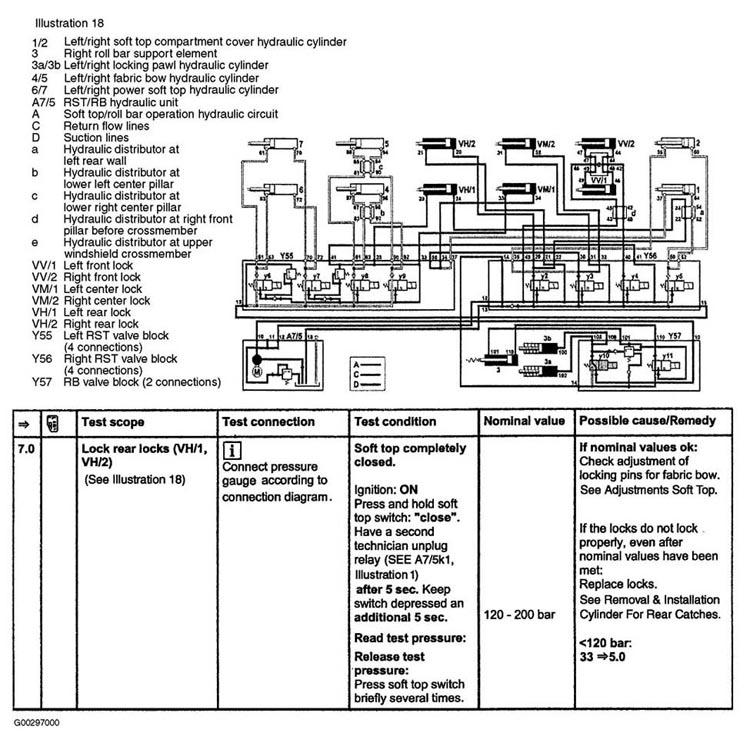

Fig 15: Soft Top Up "Lock Rear Catches" (Test Step 7.0)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
