Hydraulic Testing - Soft Top Closed (Section 33.1)

NOTE: For aid in using diagnostic test steps, see USING DIAGNOSTIC CHARTS .

Fig 1: Testing System Pressure (Test Step 1.0)

G00287529

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

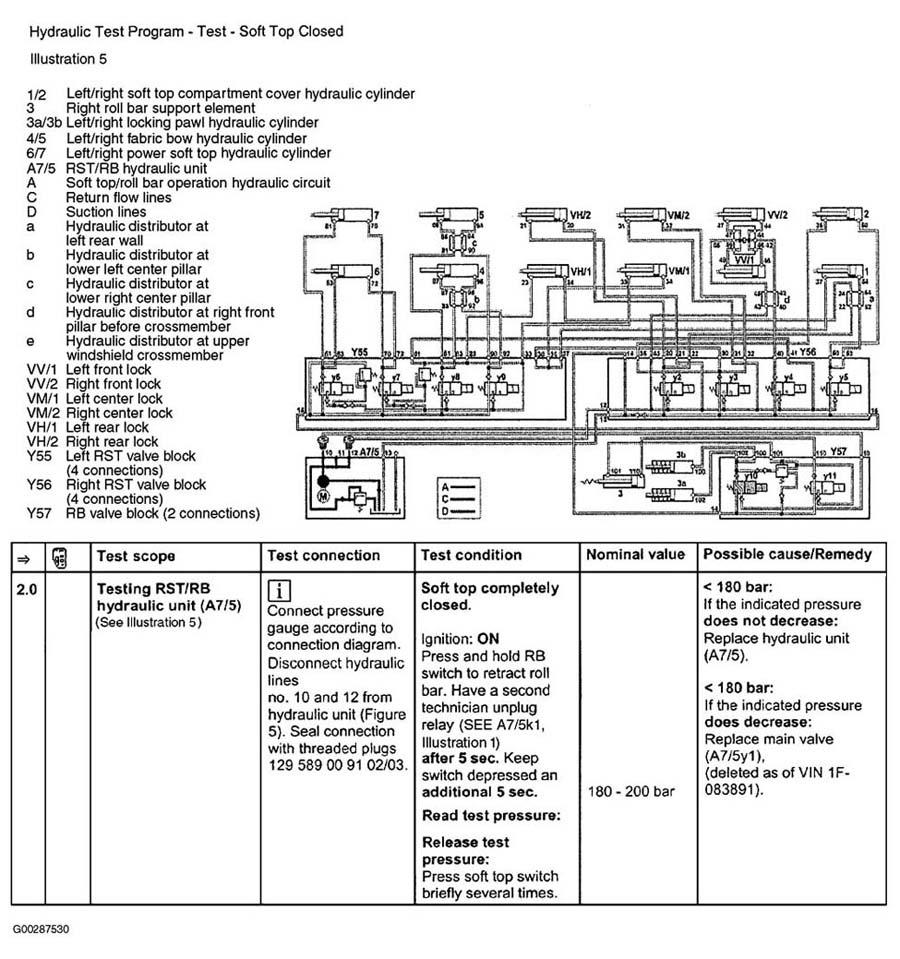

Fig 2: Testing Soft Top/Roll Bar Hydraulic Pump Unit (Test Step 2.0)

G00287530

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 3: Testing Retract Roll Bar (Test Step 3.0)

G00287531

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

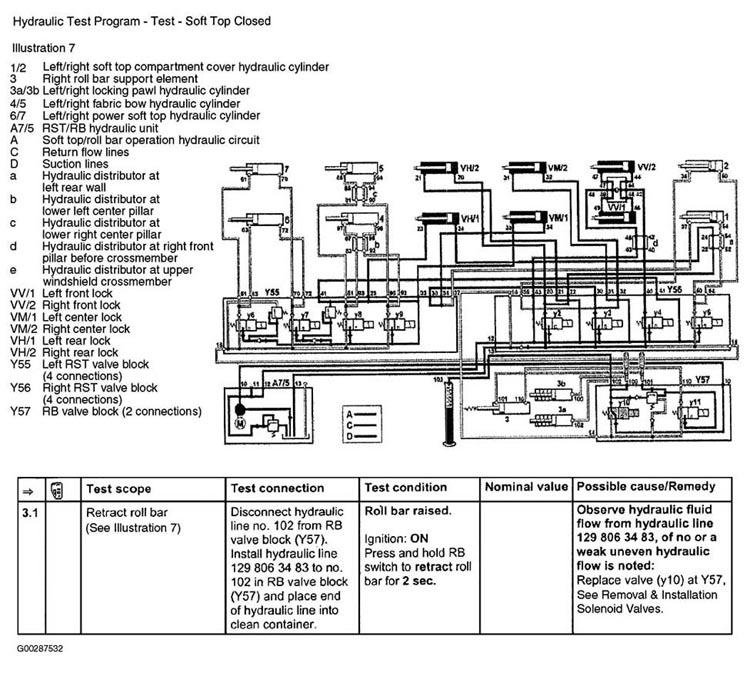

Fig 4: Testing Retract Roll Bar (Test Step 3.1)

G00287532

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 5: Testing Raise Roll Bar (Test Step 4.0)

G00287533

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

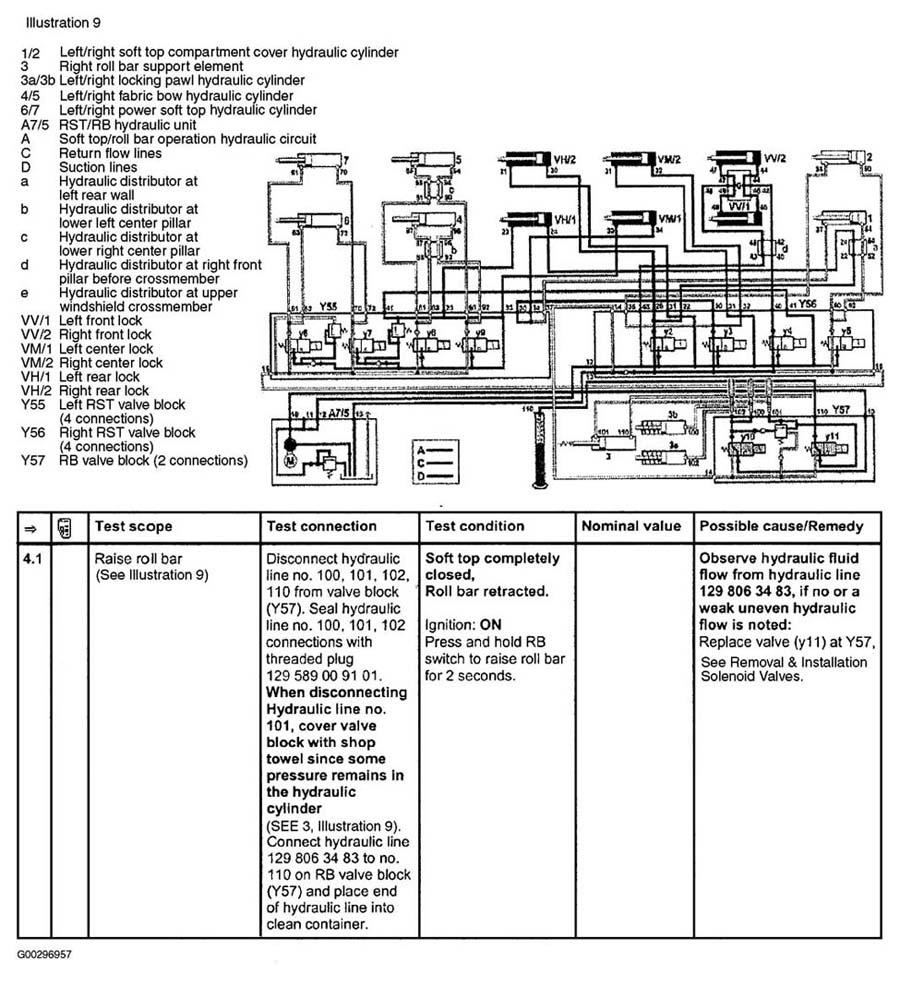

Fig 6: Testing Raise Roll Bar (Test Step 4.1)

G00296957

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 7: Testing Catches (Test Step 5.0)

G00296958

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

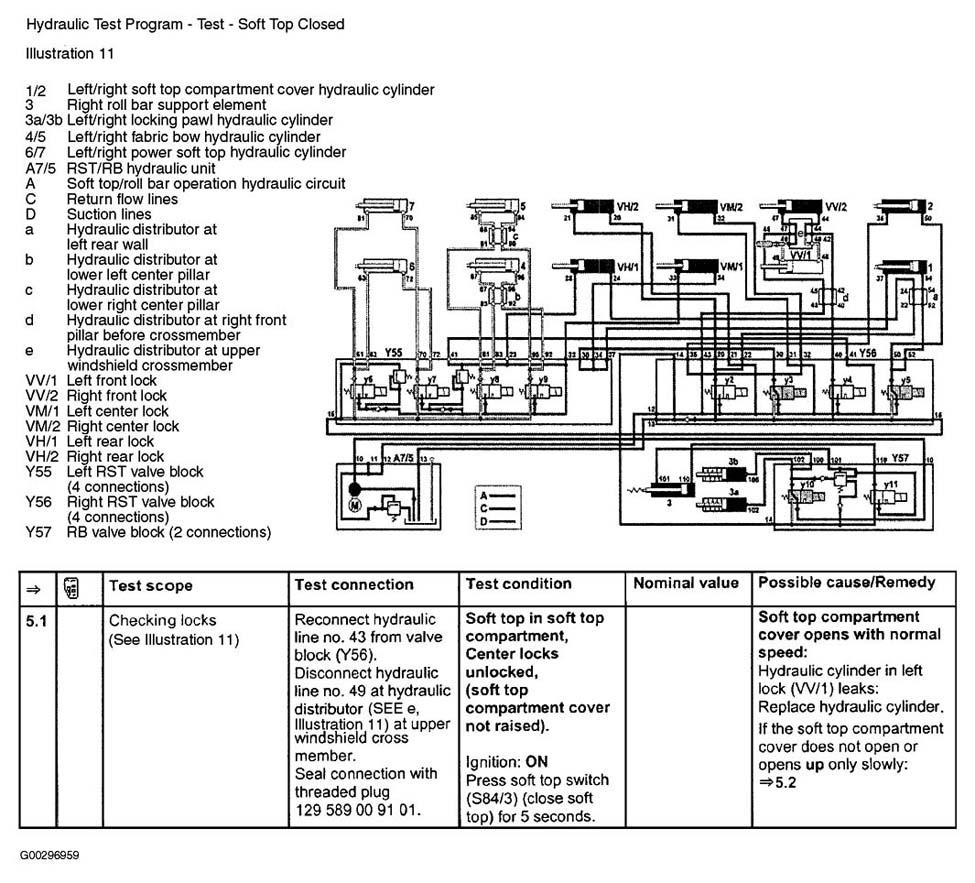

Fig 8: Testing Catches (Test Steps 5.1)

G00296959

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

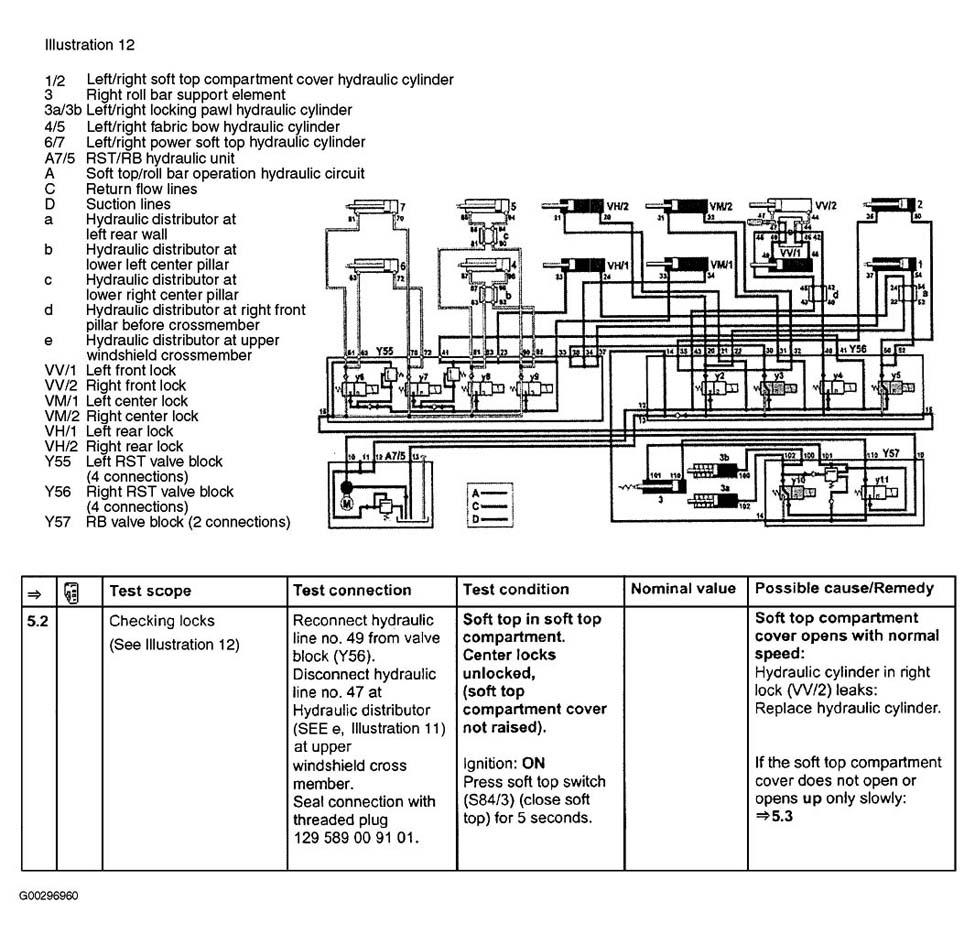

Fig 9: Testing Catches (Test Step 5.2)

G00296960

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

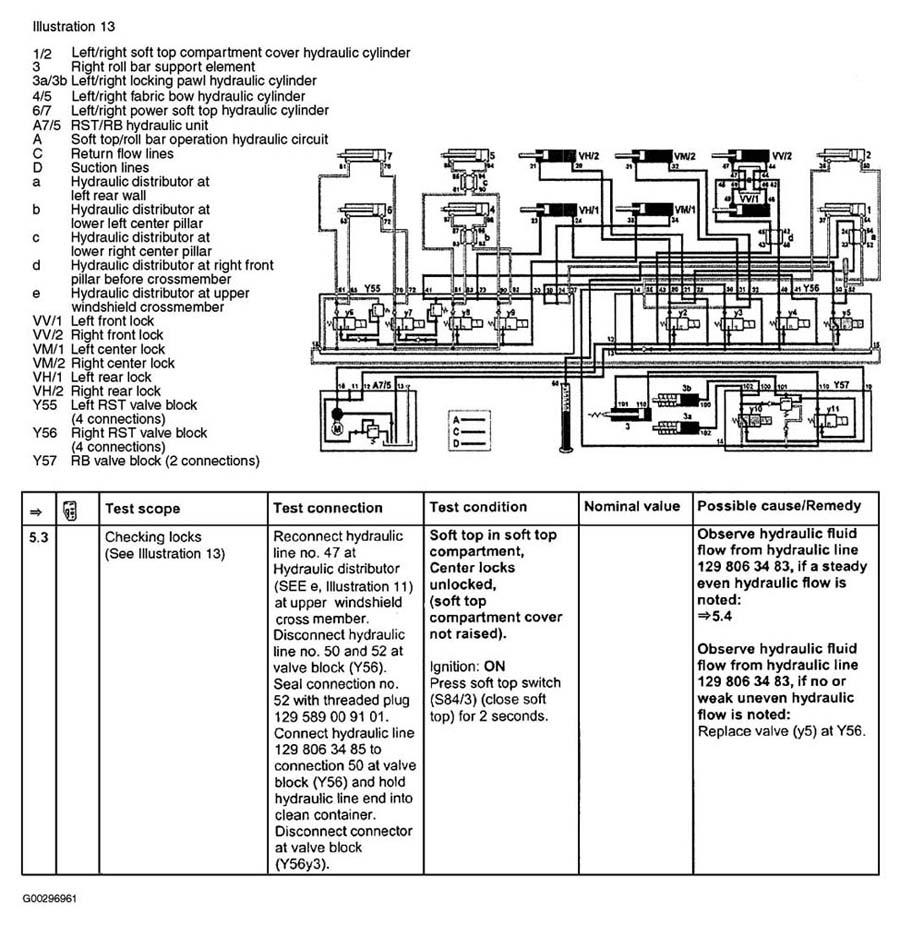

Fig 10: Testing Catches (Test Step 5.3)

G00296961

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

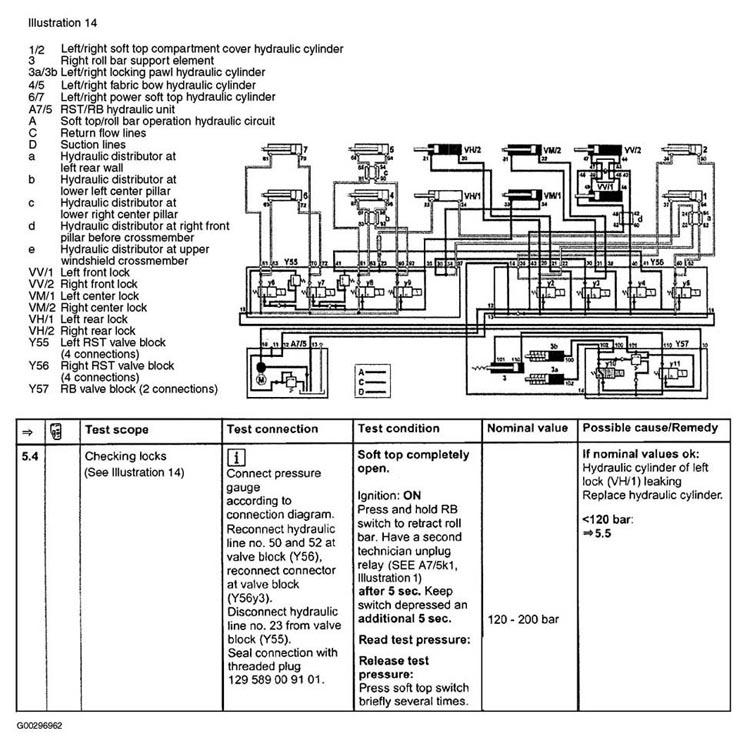

Fig 11: Testing Catches (Test Step 5.4)

G00296962

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

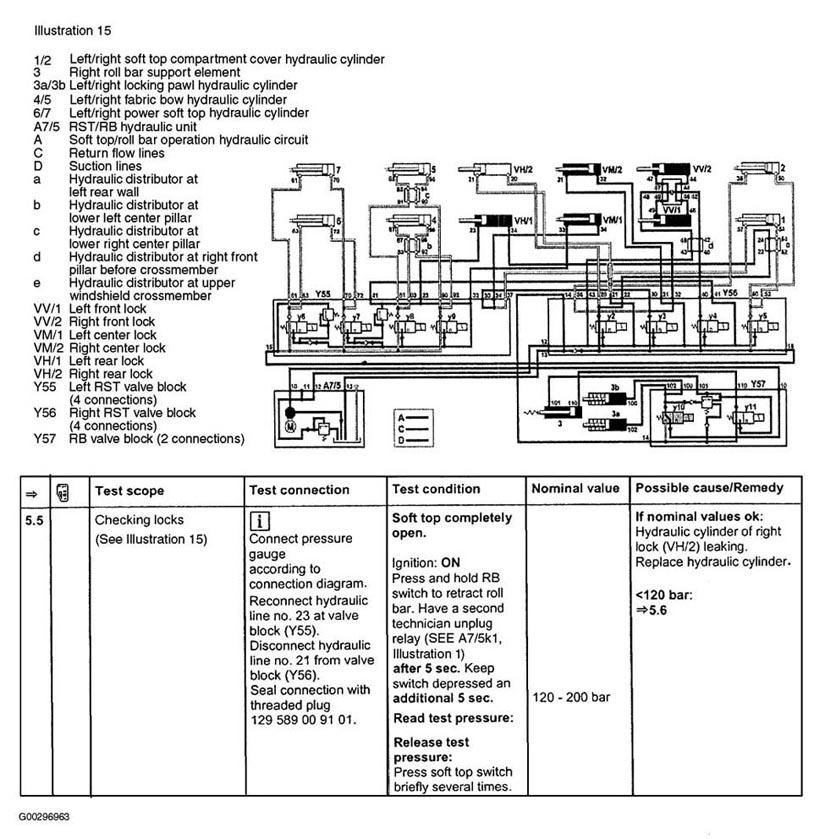

Fig 12: Testing Catches (Test Step 5.5)

G00296963

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

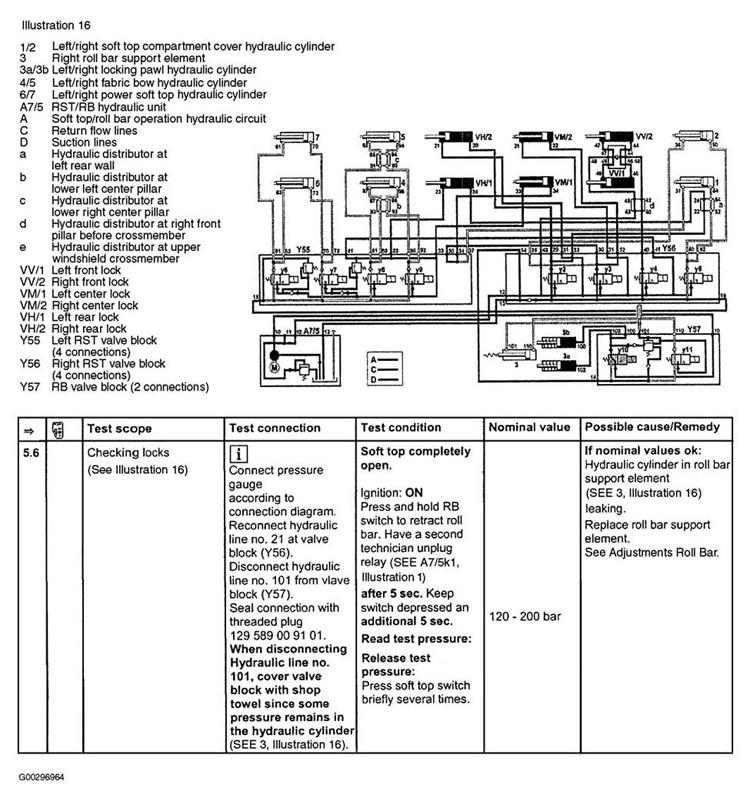

Fig 13: Testing Catches (Test Step 5.6)

G00296964

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 14: Testing Open Rear Catches (Test Step 6.0)

G00296965

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

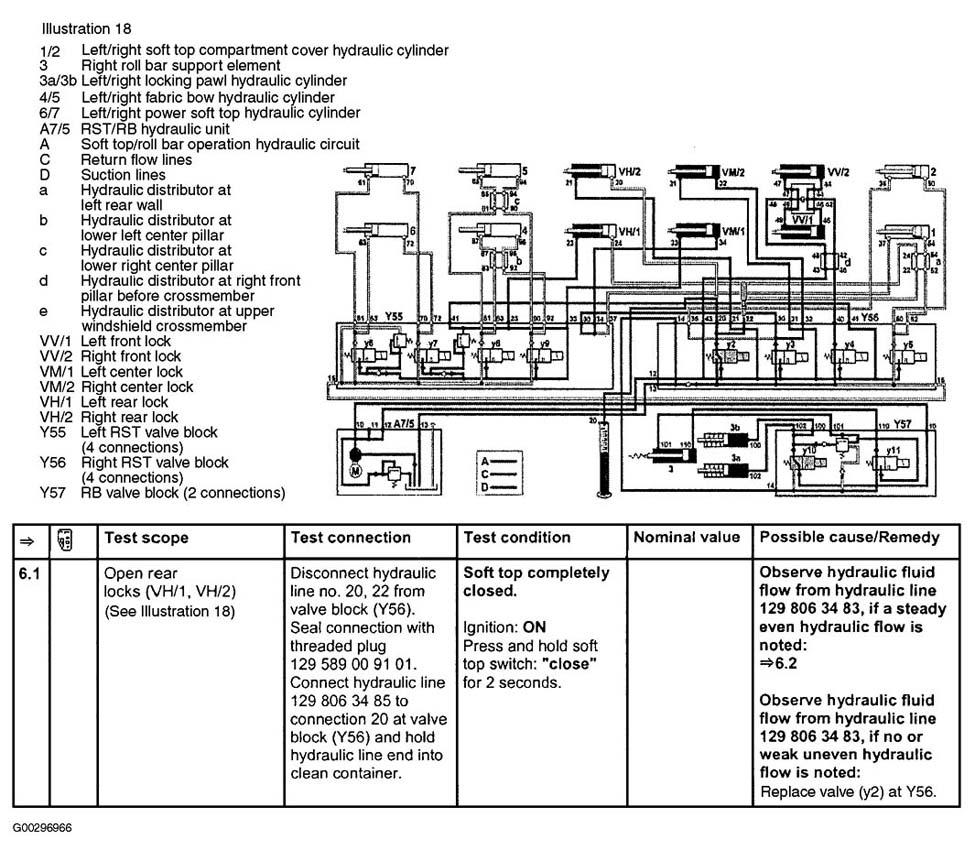

Fig 15: Testing Open Rear Catches (Test Step 6.1)

G00296966

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

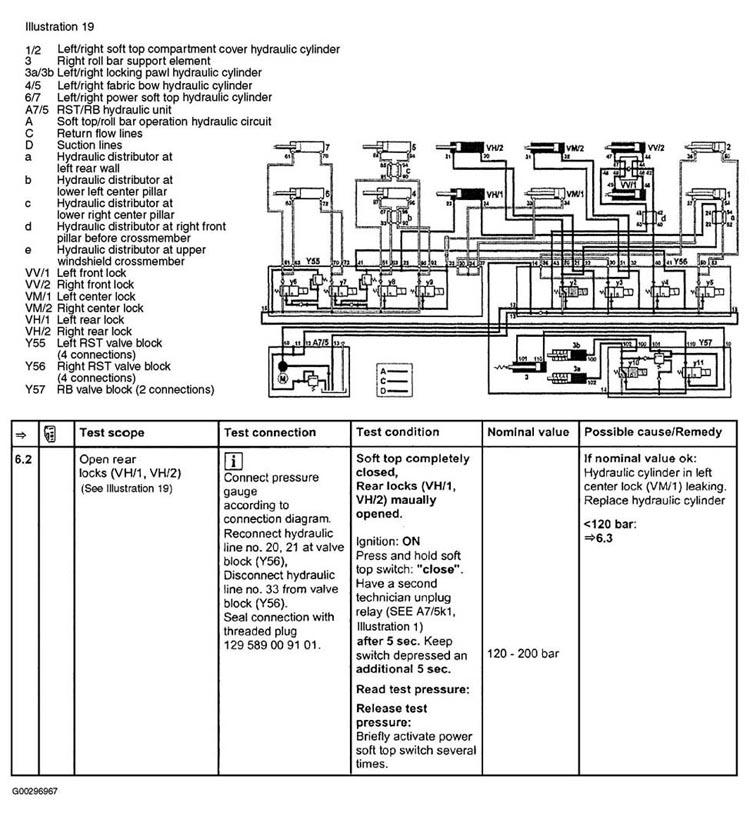

Fig 16: Testing Open Rear Catches (Test Step 6.2)

G00296967

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

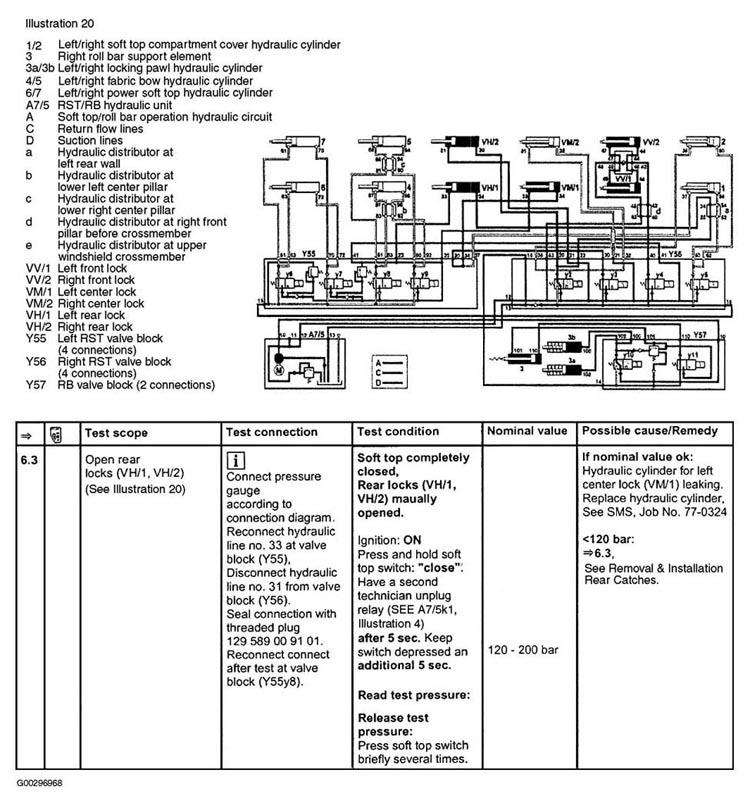

Fig 17: Testing Open Rear Catches (Test Step 6.3)

G00296968

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 18: Testing Raising Fabric Bow (Test Step 7.0)

G00296969

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

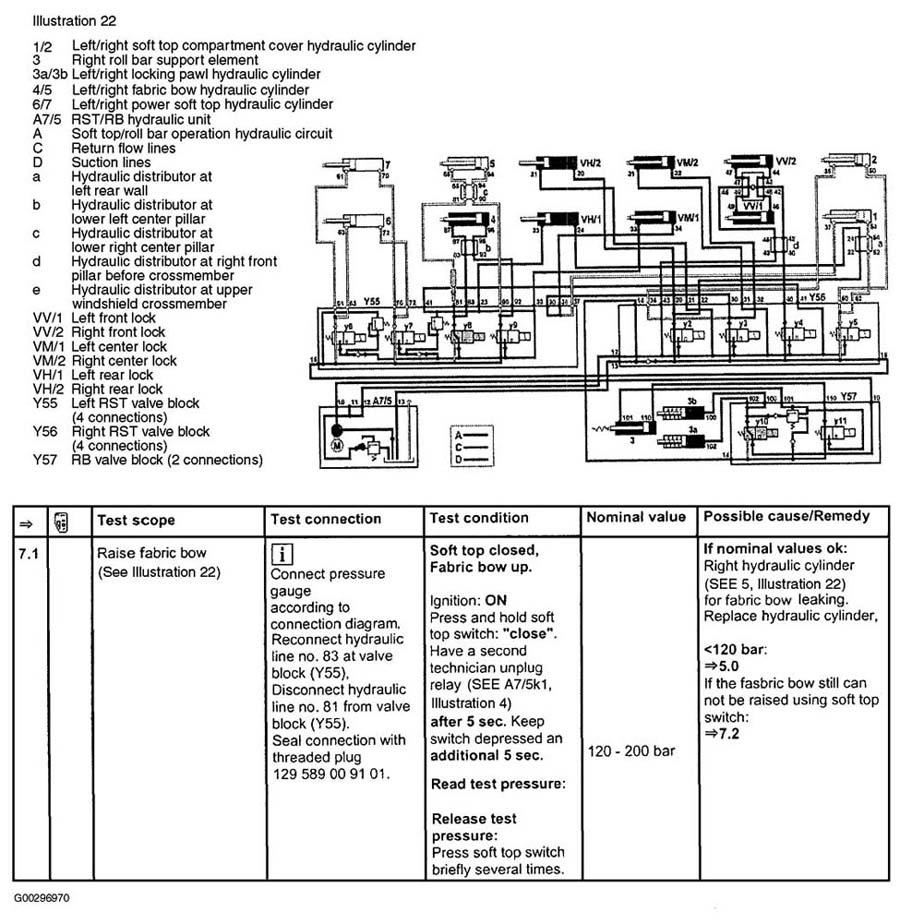

Fig 19: Testing Raising Fabric Bow (Test Step 7.1)

G00296970

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

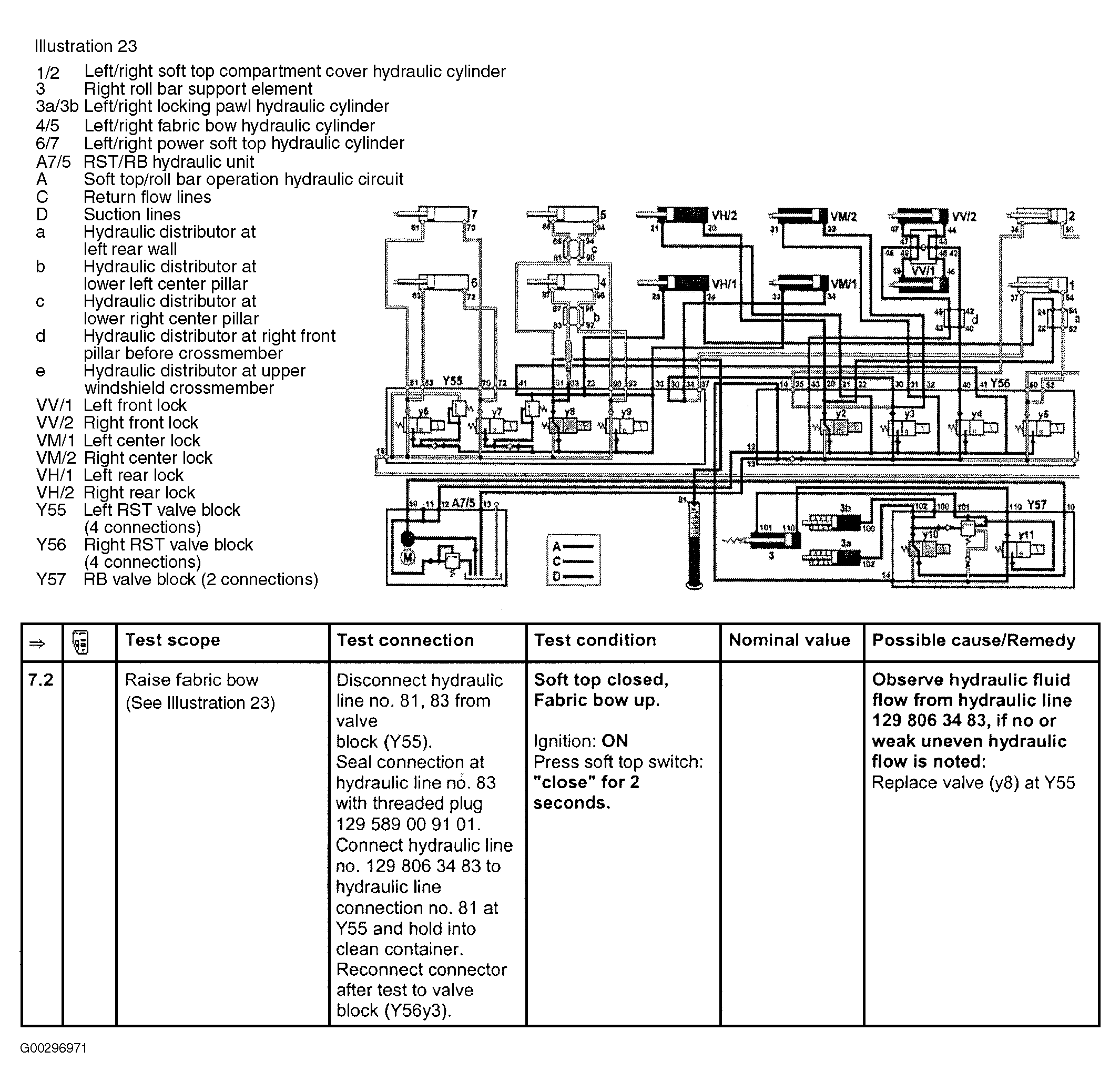

Fig 20: Testing Raising Fabric Bow (Test Step 7.2)

G00296971

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 21: Open Center Catches (Test Step 8.0)

G00296972

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

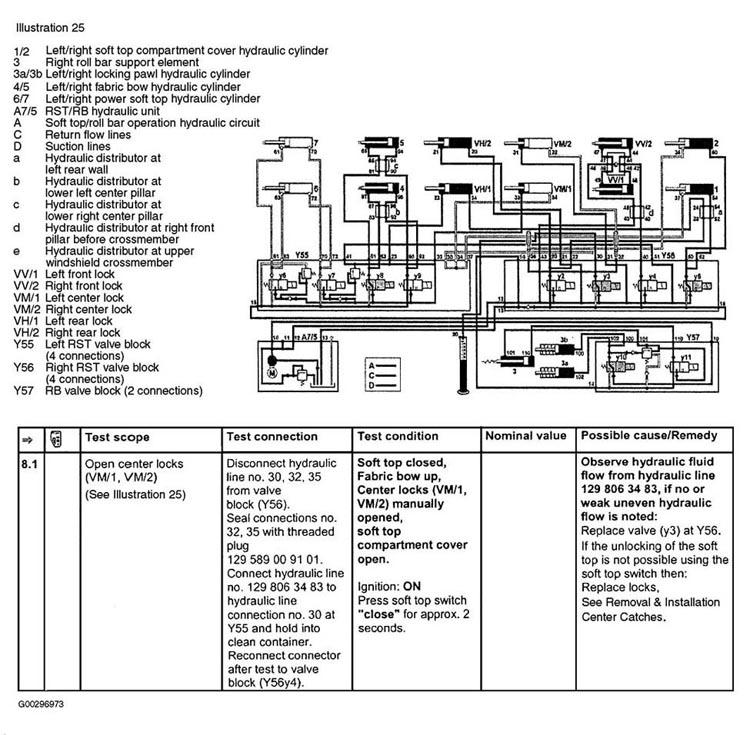

Fig 22: Open Center Catches (Test Step 8.1)

G00296973

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 23: Soft Top Compartment Cover Up (Test Step 9.0)

G00296974

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 24: Open Front Catches (Test Step 10.0)

G00296975

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

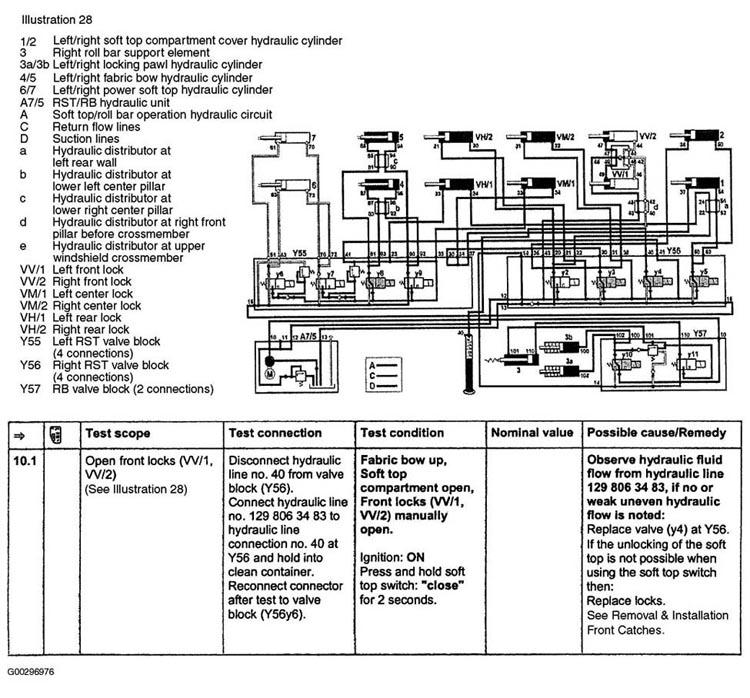

Fig 25: Open Front Catches (Test Step 10.1)

G00296976

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 26: Open Soft Top (Test Step 11.0)

G00296977

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

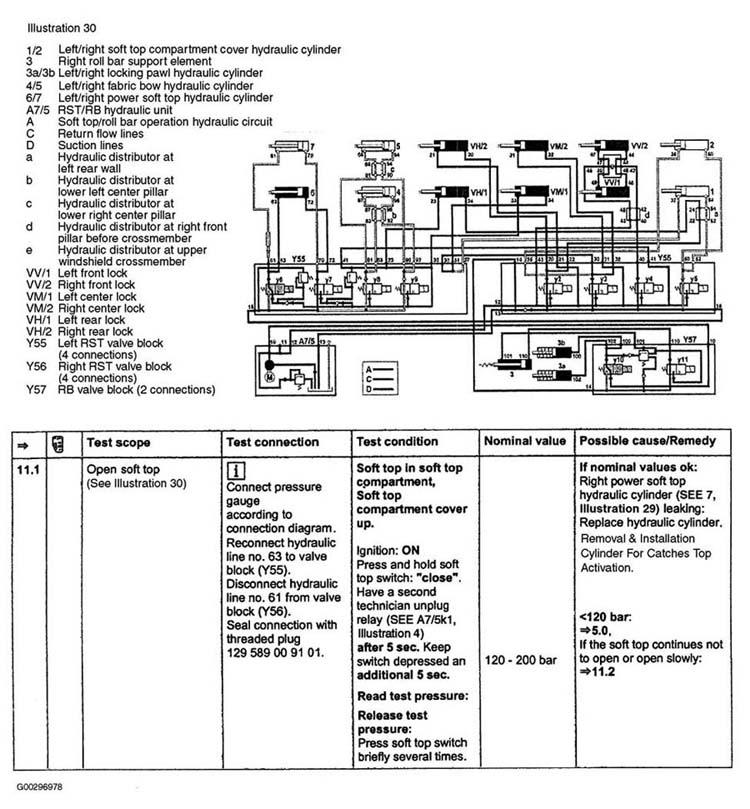

Fig 27: Open Soft Top (Test Step 11.1)

G00296978

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

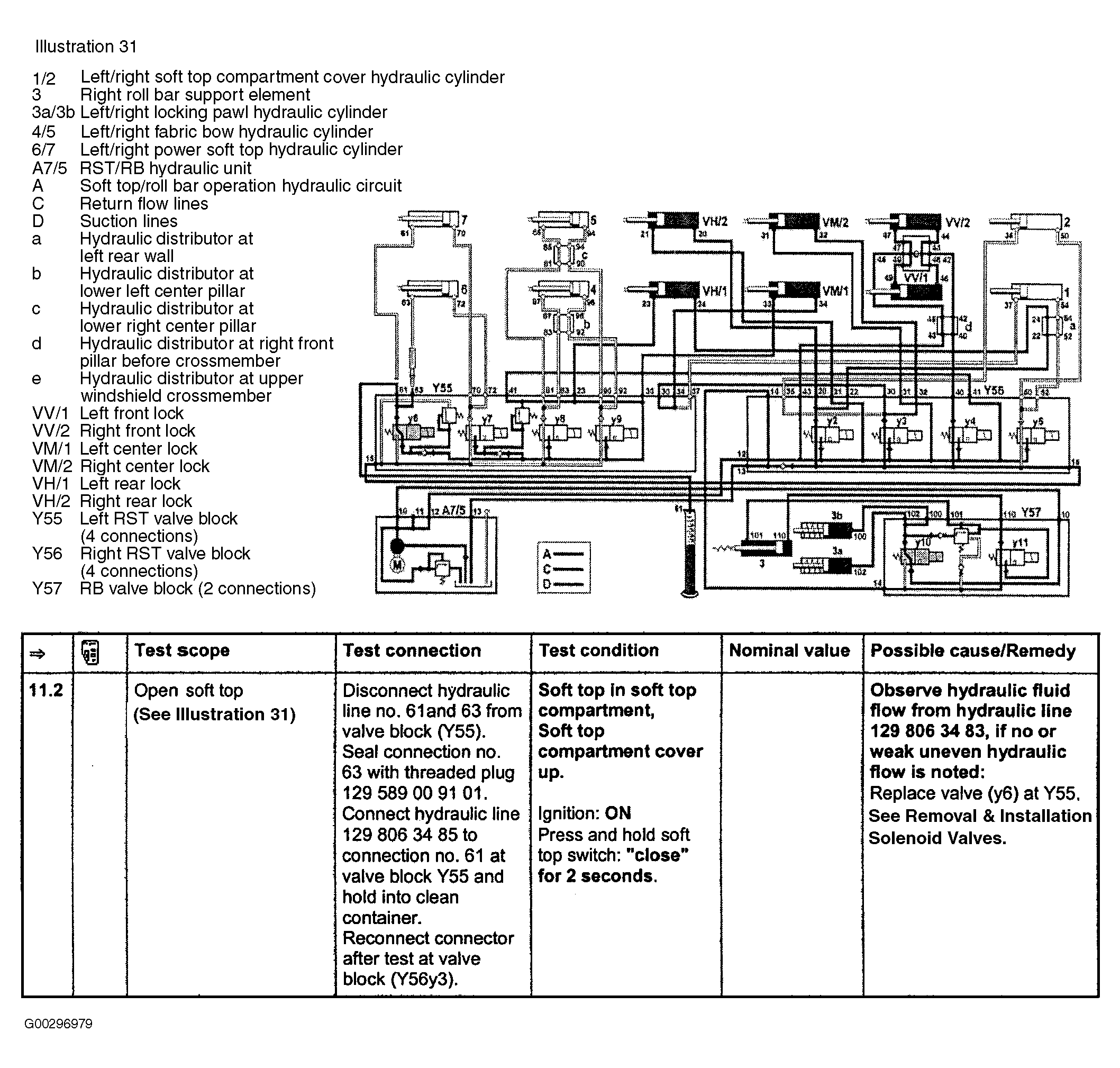

Fig 28: Open Soft Top (Test Step 11.2)

G00296979

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 29: Close Soft Top Compartment Cover & Lock Center Catches (Test Step 12.0)

G00296980

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

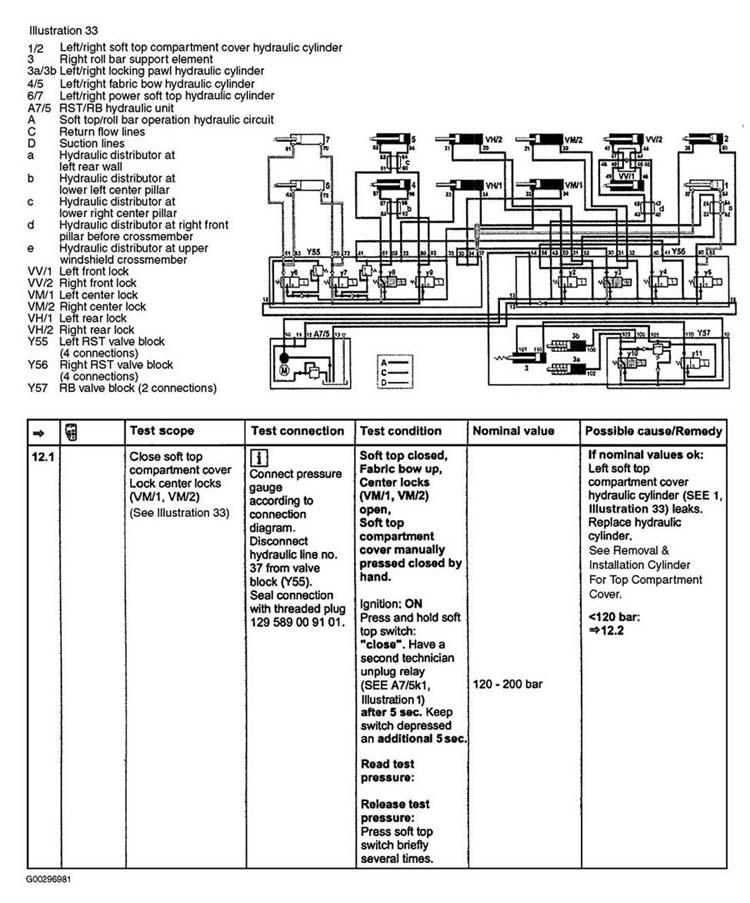

Fig 30: Close Soft Top Compartment Cover & Lock Center Catches (Test Step 12.1)

G00296981

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

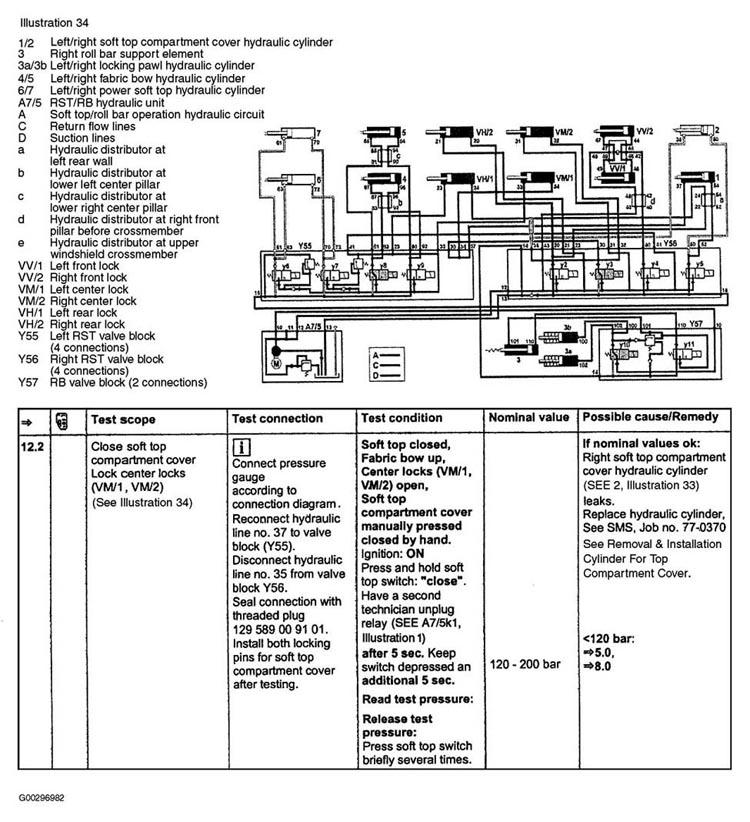

Fig 31: Close Soft Top Compartment Cover & Lock Center Catches (Test Step 12.2)

G00296982

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
