Soft Top Tester Nominal Values (SECTION 26)

NOTE: Soft top menu protocol, time and pressure specifications must be achieved during a normal/smooth and consistent soft top operational sequence (at room temperature). As long as the time specification is attained, the pressure readings are of secondary importance. System hydraulic pressure should be recorded as the limit switch activates. Refer to illustrations. See Fig 1 -Fig 3 .

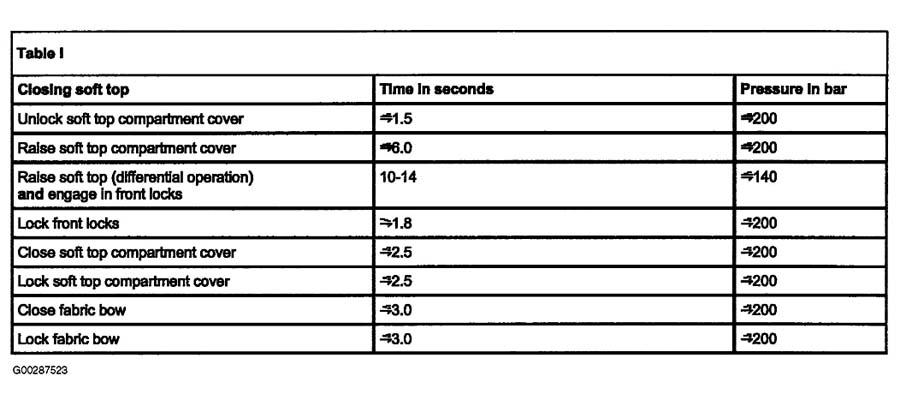

Fig 1: Identifying Soft Top Tester Nominal Valves Closing Soft Top

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

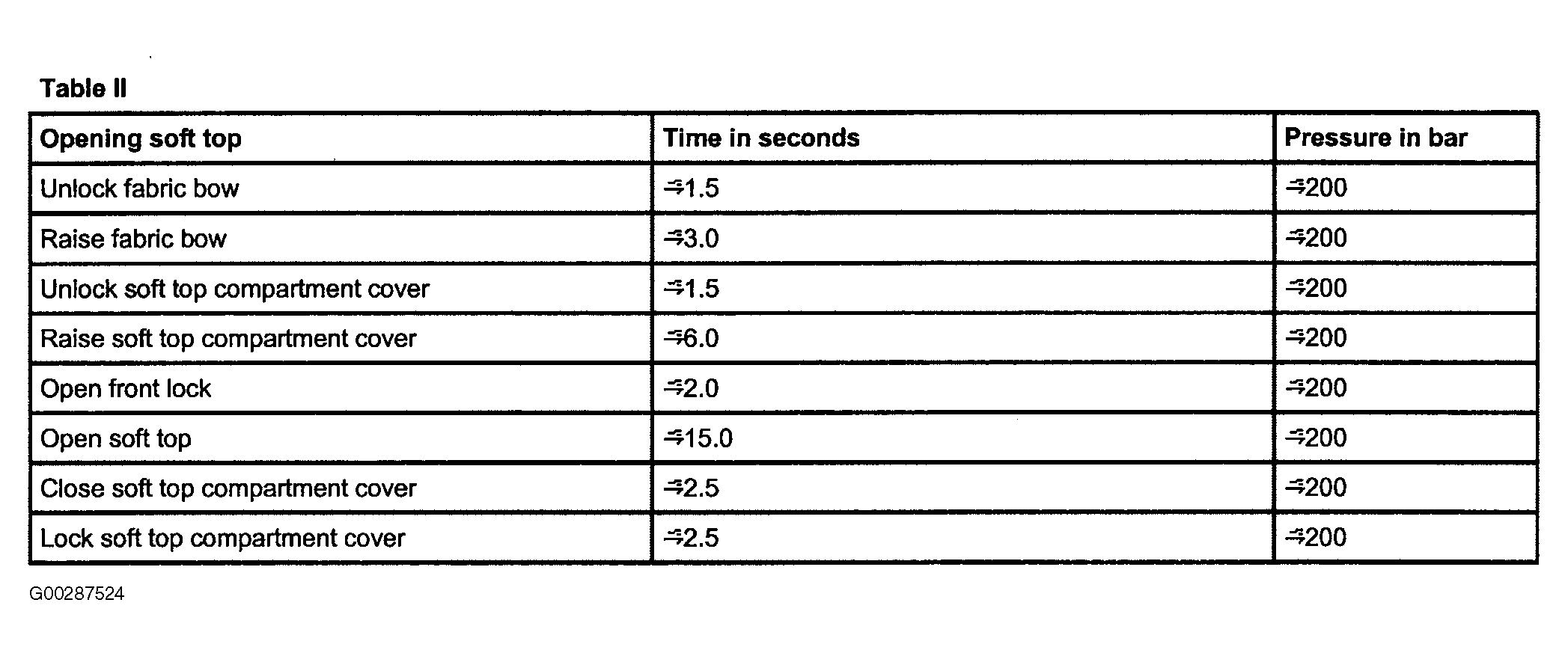

Fig 2: Identifying Soft Top Tester Nominal Valves Opening Soft Top

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

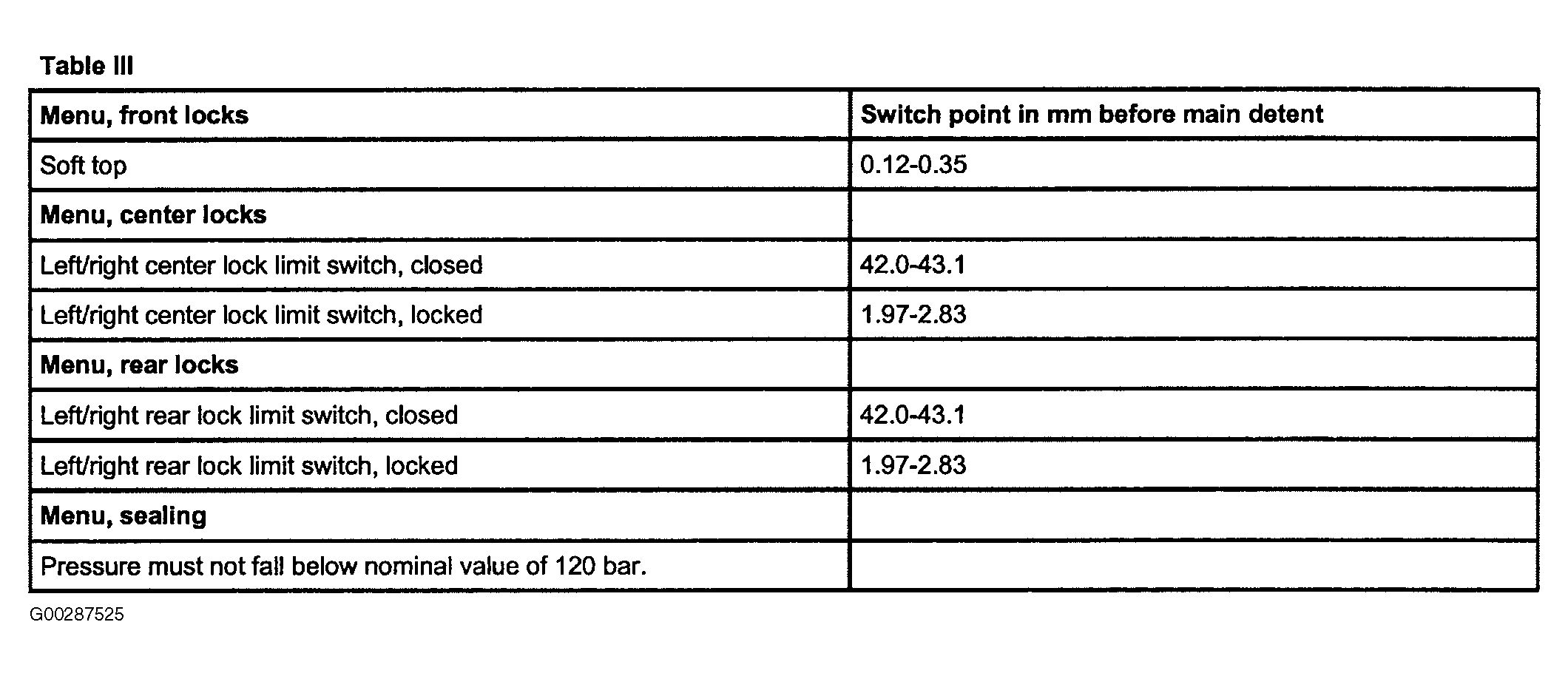

Fig 3: Identifying Soft Top Tester Nominal Valves Locking & Sealing

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
