Soft Top Electrical Tests (Section 23.1): Notes

CAUTION: Injury hazard from pinching and crushing, in extreme cases extremities can even be severed when caught in the mechanism. DO NOT allow any body parts to be in the general area of the moving components. DO NOT reach into the moving mechanism at any time during any tests. Keep away from the moving mechanism of components which are being activated using the Hand Held Tester (HHT) and or directly via circuit 30.

NOTE: Before performing any soft top electrical tests, ensure test equipment is properly connected. See CONNECTING ELECTRICAL TEST EQUIPMENT under ELECTRICAL DIAGNOSTIC TESTS (SECTION 23).

Perform testing to determine if nominal values are within specifications. Perform appropriate test when directed to do so from a table. For aid in testing review soft/hard top operation. See DESCRIPTION and SOFT/HARD TOP SYSTEM - FUNCTION TEST (SECTION 11/1) under TROUBLE SHOOTING.

Fig 1: Soft/Hard Top & Roll Bar Electrical Test Program (Steps 1.0-3.3)

G00287488

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 2: Soft/Hard Top & Roll Bar Electrical Test Program (Steps 4.0-5.1)

G00287489

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 3: Soft/Hard Top & Roll Bar Electrical Test Program (Steps 6.0-7.0)

G00287494

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 4: Soft/Hard Top & Roll Bar Electrical Test Program (Steps 7.1-9.0)

G00287490

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 5: Soft/Hard Top & Roll Bar Electrical Test Program (Steps 9.1-11.1)

G00287491

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 6: Soft/Hard Top & Roll Bar Electrical Test Program (Steps 12.0-14.0)

G00287495

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 7: Soft/Hard Top & Roll Bar Electrical Test Program (Steps 14.1-15.1)

G00287492

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 8: Soft/Hard Top & Roll Bar Electrical Test Program (Steps 16.0-17.0)

G00287493

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 9: Soft/Hard Top & Roll Bar Electrical Test Program (Steps 17.1-18.1)

G00287496

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 10: Soft/Hard Top & Roll Bar Electrical Test Program (Steps 19.0-20.0)

G00287497

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 11: Soft/Hard Top & Roll Bar Electrical Test Program (Steps 20.1-23.1)

G00287498

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 12: Soft/Hard Top & Roll Bar Electrical Test Program (Steps 24.0-25.0)

G00287499

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 13: Soft/Hard Top & Roll Bar Electrical Test Program (Steps 26.0-27.0)

G00287500

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 14: Soft/Hard Top & Roll Bar Electrical Test Program (Steps 28.0-31.0)

G00287501

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 15: Soft/Hard Top & Roll Bar Electrical Test Program (Steps 32.0-33.2)

G00287502

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 16: Soft/Hard Top & Roll Bar Electrical Test Program (Steps 34.0-34.2)

G00287503

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 17: Soft/Hard Top & Roll Bar Electrical Test Program (Steps 35.0-37.0)

G00287504

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 18: Soft/Hard Top & Roll Bar Electrical Test Program (Steps 38.0-43.0)

G00287505

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 19: Soft/Hard Top & Roll Bar Electrical Test Program (Steps 44.0-49.0)

G00287506

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 20: Soft/Hard Top & Roll Bar Electrical Test Program (Steps 50.0-53.0)

G00287507

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 21: Soft/Hard Top & Roll Bar Electrical Test Program (Steps 54.0-59.0)

G00287508

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 22: Soft/Hard Top & Roll Bar Electrical Test Program (Step 60.0)

G00287509

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 23: Soft/Hard Top & Roll Bar Electrical Test Program (Step 60.1)

G00287510

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

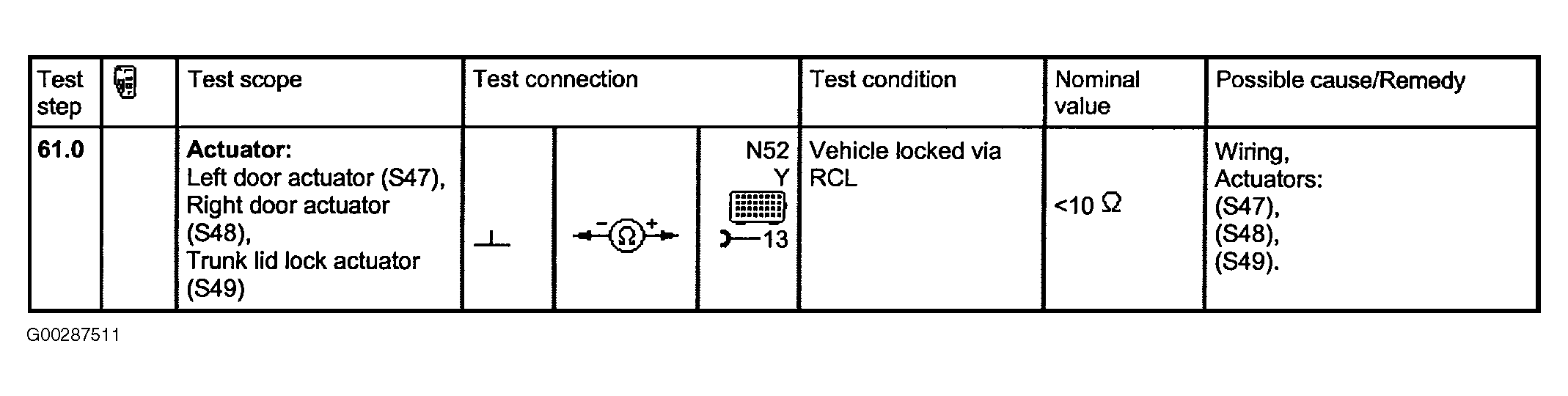

Fig 24: Soft/Hard Top & Roll Bar Electrical Test Program (Step 61.0)

G00287511

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
